Microchip provides a recommended PCB layout in the MCP6S21-I/P datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, it's recommended to follow general analog circuit design best practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops.
To ensure accuracy and stability, it's essential to follow proper layout and design guidelines, use a stable and low-noise power supply, and decouple the input and output pins with suitable capacitors. Additionally, consider using a voltage reference IC, such as the MCP1501, to provide a stable reference voltage to the MCP6S21-I/P.
The MCP6S21-I/P has an absolute maximum input voltage rating of 6.5V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage remains within the recommended operating range of 2.2V to 5.5V to maintain device reliability and performance.
The MCP6S21-I/P is rated for operation up to 125°C (TJ). However, the device's performance and accuracy may degrade at higher temperatures. It's essential to consider the device's thermal characteristics and ensure proper thermal management, such as using a heat sink or reducing power consumption, to maintain reliable operation in high-temperature environments.
To troubleshoot issues with the output voltage, start by verifying the input voltage and ensuring it's within the recommended range. Check the output voltage with a multimeter or oscilloscope to identify any anomalies. If the issue persists, review the PCB layout and design to ensure proper routing and grounding. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MCP6S21-I/P Overview

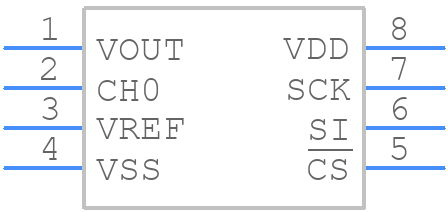

Use the download button to access the MCP6S21-I/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6S,
or try a keyword search, such as Other Signal Circuits
