MCP6S22-I/P footprint, schematic symbol and 3D model by Microchip

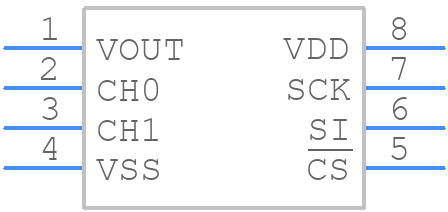

Symbol

click to zoom

PCB Footprints

MCP6S22-I/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - pdip8

click to zoom

3D Models

MCP6S22-I/P - Microchip - 3D model - Dual-In-Line Packages - pdip8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCP6S22-I/P
Part Number MCP6S22-I/P
Manufacturer Microchip
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - pdip8
Released Date Jan 11, 2017
Last Modified Date Jun 2, 2025 11:16 AM UTC
Pinout / Pin List Click Here (Member Only)

MCP6S22-I/P Details

Manufacturer Part Number:
MCP6S22-I/P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DIP
Package Description:
0.300 INCH, PLASTIC, DIP-8
Pin Count:
8
Manufacturer Package Code:
PDIP-8
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
8 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
8
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e3
Length:
9.46 mm
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
4.32 mm
Supply Current-Max (Isup):
1.35 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
4 V
Surface Mount:
NO
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

MCP6S22-I/P Frequently Asked Questions (FAQs)

Microchip provides a recommended PCB layout in the MCP6S22-I/P evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The gain of the MCP6S22-I/P can be configured using external resistors. Microchip provides a gain calculation tool and application notes that provide guidance on selecting the optimal gain configuration for specific applications.
The maximum input voltage that the MCP6S22-I/P can handle without damage is 6V. Exceeding this voltage can cause permanent damage to the device.
The MCP6S22-I/P requires a proper bias voltage to operate optimally. Microchip recommends using a voltage reference IC, such as the MCP1501, to provide a stable bias voltage.
The typical settling time of the MCP6S22-I/P is around 10-15 microseconds. This settling time can affect the performance of applications that require fast signal processing, such as audio or high-speed data acquisition systems.

Trust Checks

System Verified

MCP6S22-I/P Overview

Use the download button to access the MCP6S22-I/P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCP6S, or try a keyword search, such as Other Signal Circuits
