- Part Number MCP6S22-I/SN
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MCP6S22-I/SN
- Released Date Apr 16, 2015
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCP6S22-I/SN Details
-
Manufacturer Part Number:
MCP6S22-I/SN
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
0.150 INCH, PLASTIC, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOIC-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
6 Weeks
MCP6S22-I/SN Frequently Asked Questions (FAQs)
-
A good PCB layout for the MCP6S22-I/SN involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
-
To ensure stability in high-temperature environments, it's essential to follow proper thermal design practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, selecting components with a high temperature rating and using thermal interface materials can help to reduce thermal resistance.
-
Best practices for filtering and decoupling the power supply to the MCP6S22-I/SN include using a low-pass filter with a cut-off frequency below the switching frequency, placing decoupling capacitors close to the device, and using a combination of ceramic and electrolytic capacitors to filter out high-frequency noise and ripple.
-
To troubleshoot common issues with the MCP6S22-I/SN, start by checking the PCB layout and ensuring that the device is properly decoupled and filtered. Verify that the input and output capacitors are properly sized and placed, and check for any signs of overheating or thermal stress. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
-
Key considerations for EMI and EMC compliance when using the MCP6S22-I/SN include using a shielded enclosure, minimizing loop areas and keeping cables short, using EMI filters and common-mode chokes, and ensuring that the device is properly grounded and bonded. Additionally, following good PCB design practices, such as using a solid ground plane and minimizing signal trace lengths, can help to reduce EMI emissions.
Trust Checks
Community Provided
System Verified
Community Approved
MCP6S22-I/SN Overview

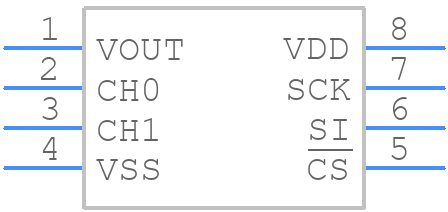

Use the download button to access the MCP6S22-I/SN schematic symbol, PCB footprint, and 3D model.
