A good PCB layout for the MCP6S26-I/SL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure that the MCP6S26-I/SL operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, ensuring good airflow, and avoiding high-power components nearby that can generate excessive heat.
When selecting input and output capacitors for the MCP6S26-I/SL, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low ESR and a capacitance value of 1-10uF are recommended. The capacitor's voltage rating should be higher than the maximum input voltage.
To troubleshoot common issues with the MCP6S26-I/SL, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Verify that the input and output capacitors are properly selected and placed. Also, check the device's pin connections and ensure that they are correct. If issues persist, consult the datasheet and application notes for further guidance.
The MCP6S26-I/SL is a high-performance, low-noise amplifier with a high common-mode rejection ratio (CMRR) and a high power supply rejection ratio (PSRR). It's ideal for applications requiring high accuracy and low noise. Compared to other similar devices, the MCP6S26-I/SL offers a unique combination of high performance, low power consumption, and small package size.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP6S26-I/SL Overview

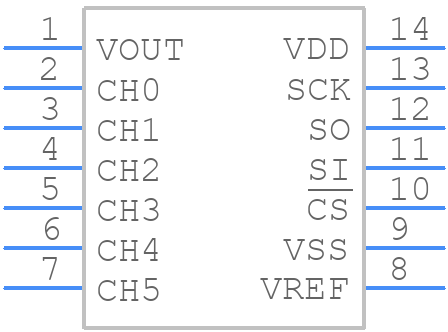

Use the download button to access the MCP6S26-I/SL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6S,
or try a keyword search, such as Other Signal Circuits
