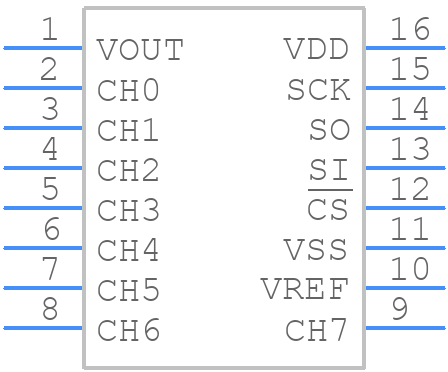

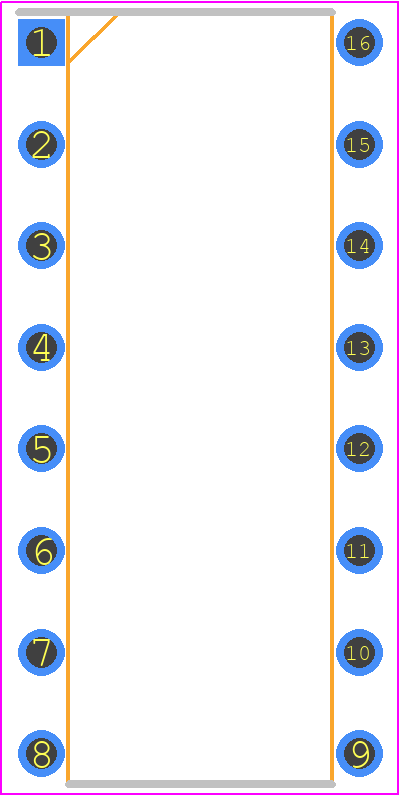

MCP6S28-I/P - Microchip

MCP6S28-I/P Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the MCP6S28-I/P?
  Microchip recommends a symmetrical layout with the device centered on the PCB, and the input and output pins should be routed away from each other to minimize noise coupling. Additionally, a solid ground plane and a decoupling capacitor (e.g., 10uF) should be placed close to the device.
• How do I ensure the accuracy of the MCP6S28-I/P over temperature?
  To ensure accuracy over temperature, it's essential to follow proper PCB layout and thermal management practices. This includes using a thermally conductive PCB material, providing adequate heat sinking, and minimizing thermal gradients. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance.
• What is the maximum input voltage that the MCP6S28-I/P can handle?
  The maximum input voltage that the MCP6S28-I/P can handle is 6V, which is the absolute maximum rating. However, the recommended input voltage range is 2.2V to 5.5V to ensure optimal performance and accuracy.
• Can I use the MCP6S28-I/P in a high-noise environment?
  Yes, the MCP6S28-I/P is designed to operate in high-noise environments. It has a high common-mode rejection ratio (CMRR) and a high power supply rejection ratio (PSRR), which help to minimize the effects of noise on the output. However, proper PCB layout and shielding practices should still be followed to minimize noise coupling.
• How do I program the MCP6S28-I/P for specific gain and offset settings?
  The MCP6S28-I/P can be programmed using a digital interface (e.g., SPI or I2C) to set specific gain and offset settings. The device has a built-in EEPROM that stores the configuration data. Microchip provides software tools and documentation to facilitate the programming process.
