MCP6S28T-I/SL - Microchip

Description: Special Purpose Amplifiers 8-Chan. 12 MHz SPI

Download MCP6S28T-I/SL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

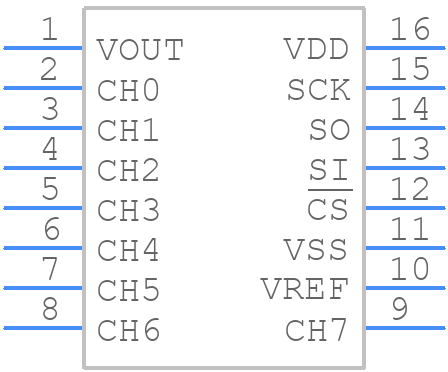

MCP6S28T-I/SL - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6S28T-I/SL - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead(SL) SOIC (Narrow 150 mil)
click to zoom
3D Models
MCP6S28T-I/SL - Microchip - 3D model - Small Outline Packages - 16-Lead(SL) SOIC (Narrow 150 mil)
click to zoom

MCP6S28T-I/SL Details

  • Manufacturer Part Number:

    MCP6S28T-I/SL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.91 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MCP6S28T-I/SL Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6S28T-I/SL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane can help to minimize noise and ensure optimal performance.
  • The gain resistor values for the MCP6S28T-I/SL depend on the specific application requirements. A good starting point is to use the gain resistor values recommended in the datasheet. However, if a different gain is required, the resistor values can be calculated using the formula: Rgain = (Vref / (2 * Vcm)) * (1 / (1 - (Vcm / Vref))), where Vref is the reference voltage and Vcm is the common-mode voltage.
  • The maximum input voltage that the MCP6S28T-I/SL can handle is ±5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use input voltage limiting resistors or voltage clamping circuits to protect the device from overvoltage conditions.
  • The MCP6S28T-I/SL is specified to operate from -40°C to +125°C. To ensure that the device operates within this range, it's recommended to use a thermally conductive material, such as a heat sink or a thermal pad, to dissipate heat away from the device. Additionally, ensuring good airflow around the device and avoiding high-power dissipation can help to keep the device within its specified temperature range.
  • The recommended power-up sequence for the MCP6S28T-I/SL is to first apply the analog power supply (VDDA) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
