MCP6S91-E/P - Microchip

Description: Microchip MCP6S91-E/P, Programmable Gain Amplifier, Rail to Rail Input/Output, 8-Pin PDIP

Download MCP6S91-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

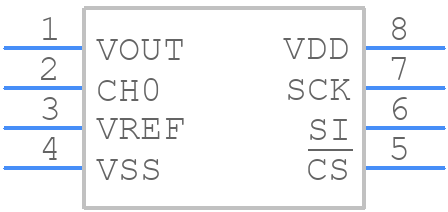

MCP6S91-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6S91-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 pdip
click to zoom
3D Models
MCP6S91-E/P - Microchip - 3D model - Dual-In-Line Packages - 8 pdip
click to zoom

MCP6S91-E/P Details

  • Manufacturer Part Number:

    MCP6S91-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, MS-001, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.46 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    4.32 mm

  • Supply Current-Max (Isup):

    1.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MCP6S91-E/P Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP6S91-E/P evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The gain and bandwidth of the MCP6S91-E/P can be configured using external resistors and capacitors. Microchip provides a gain and bandwidth calculation tool on their website, which can be used to determine the required component values for a specific application.
  • The maximum input voltage that the MCP6S91-E/P can handle is ±22V, but it's recommended to limit the input voltage to ±15V to ensure optimal performance and prevent damage to the device.
  • Yes, the MCP6S91-E/P can be used in a single-supply application, but it requires a voltage divider or other level-shifting circuitry to shift the input signal to the correct voltage range. Microchip provides application notes and examples for single-supply operation.
  • Microchip provides troubleshooting guides and application notes that cover common issues with the MCP6S91-E/P, including oscillation and instability. These resources provide guidance on how to identify and fix common problems, such as incorrect component values, poor PCB layout, or inadequate power supply decoupling.
