- Part Number MCP6S92-E/SN
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Lead(SN) SOIC (150 mil)
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP6S92-E/SN Details
-
Manufacturer Part Number:
MCP6S92-E/SN
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
0.150 MM INCH, PLASTIC, MS-012, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOIC-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
6 Weeks
MCP6S92-E/SN Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout in the MCP6S92-E/SN evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The MCP6S92-E/SN has a programmable gain amplifier (PGA) that can be configured using the SPI interface. The gain and bandwidth can be set using the PGA gain and bandwidth registers, respectively. Refer to the datasheet for the specific register settings and equations to calculate the desired gain and bandwidth.
-
The maximum input voltage that the MCP6S92-E/SN can handle is ±VDD + 0.3V, where VDD is the supply voltage. However, it's recommended to limit the input voltage to ±VDD to ensure optimal performance and prevent damage to the device.
-
The MCP6S92-E/SN is specified to operate from -40°C to +125°C. Ensure that the device is properly heatsinked and that the PCB is designed to dissipate heat effectively. Also, consider using thermal management techniques such as thermal vias and thermal pads to keep the device within its specified temperature range.
-
The recommended power-up sequence for the MCP6S92-E/SN is to apply the supply voltage (VDD) first, followed by the reference voltage (VREF), and then the input signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
Trust Checks
Community Provided
System Verified
Community Approved
MCP6S92-E/SN Overview

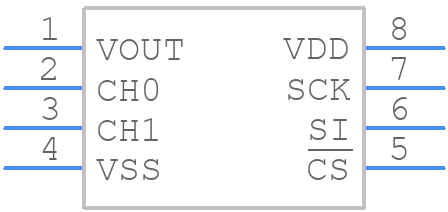

Use the download button to access the MCP6S92-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6S,
or try a keyword search, such as Other Signal Circuits
