MCP6V27-E/SN - Microchip

Description: Op amp, dual 2MHz RRIO, auto-zero, SOIC8 Microchip MCP6V27-E/SN Dual Operational Amplifier Linear, 2MHz Rail-Rail, 2.3

Download MCP6V27-E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

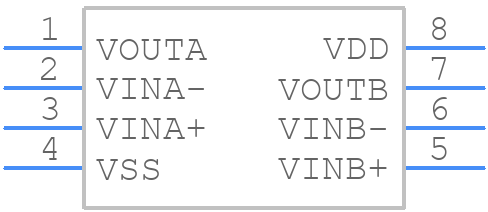

MCP6V27-E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6V27-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom
3D Models
MCP6V27-E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom

MCP6V27-E/SN Details

  • Manufacturer Part Number:

    MCP6V27-E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Min:

    125 dB

  • Common-mode Reject Ratio-Nom:

    142 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2000

  • Voltage Gain-Min:

    1778000

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6V27-E/SN Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output pins away from each other, use a ground plane, and minimize the distance between the device and the decoupling capacitors. Additionally, use a low-impedance path for the output voltage and keep the sensitive analog traces away from the digital traces.
  • To ensure stability and accuracy, use a stable input voltage, decouple the input and output pins with capacitors, and keep the device within the recommended operating temperature range. Additionally, consider using a voltage regulator to regulate the input voltage and minimize noise.
  • The recommended input voltage range for the MCP6V27-E/SN is 4.5V to 18V. Operating outside this range may affect the output voltage accuracy. For optimal performance, use an input voltage between 5V and 15V to ensure the output voltage is within the specified tolerance.
  • The output voltage tolerance of the MCP6V27-E/SN is typically ±0.5% over the entire operating temperature range. Factors that affect the output voltage tolerance include input voltage, temperature, and load current. Use the datasheet specifications and application notes to calculate the output voltage tolerance for your specific application.
  • The recommended output capacitor value for the MCP6V27-E/SN is 10uF to 22uF. A larger output capacitor value can improve the output voltage stability, but may also increase the startup time. A smaller output capacitor value can reduce the startup time, but may also affect the output voltage stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6V27-E/SN Overview

Use the download button to access the MCP6V27-E/SN schematic symbol, PCB footprint, and 3D model.
