MCP6V64-E/ST - Microchip

Description: Op Amp Quad Chopper Amplifier R-R I/O 5.5V 14-Pin TSSOP Tube

Download MCP6V64-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

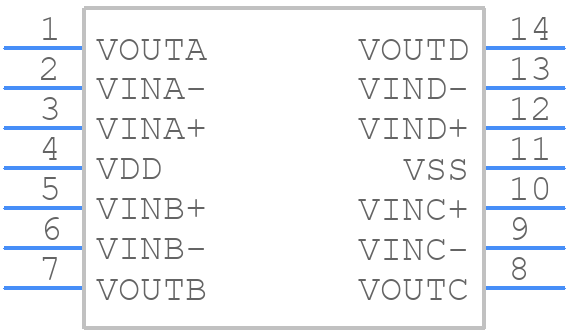

MCP6V64-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6V64-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-LEAD PLASTIC THIN SMALL OUTLINE
click to zoom
3D Models
MCP6V64-E/ST - Microchip - 3D model - Small Outline Packages - 14-LEAD PLASTIC THIN SMALL OUTLINE
click to zoom

MCP6V64-E/ST Details

  • Manufacturer Part Number:

    MCP6V64-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    134 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.45 V/us

  • Supply Current-Max:

    0.52 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    1778279

  • Wideband:

    NO

  • Width:

    4.4 mm

MCP6V64-E/ST Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6V64-E/ST involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor (Cout) to minimize ringing and ensure stability.
  • The output capacitor (Cout) value depends on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to choose a Cout value between 1uF to 10uF, with a voltage rating of at least 2x the output voltage. For example, for a 5V output, choose a 10uF, 10V capacitor.
  • The MCP6V64-E/ST has an absolute maximum input voltage rating of 18V. Exceeding this voltage can cause permanent damage to the device. It's recommended to ensure that the input voltage remains below 15V to account for voltage spikes and transients.
  • To ensure stability, follow the recommended PCB layout guidelines, use a suitable output capacitor (Cout) value, and ensure that the input voltage is within the recommended range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins can help to reduce noise and improve stability.
  • The typical dropout voltage of the MCP6V64-E/ST is around 1.5V. This means that the input voltage must be at least 1.5V higher than the desired output voltage to ensure proper regulation. For example, to get a 5V output, the input voltage should be at least 6.5V.
