- Part Number MCP6V87T-E/MS
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-MSOP
- Released Date Jul 9, 2024
- Last Modified Date Jul 9, 2024 10:54 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCP6V87T-E/MS Details
-
Manufacturer Part Number:
MCP6V87T-E/MS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
MSOP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
11 Weeks
-
Manufacturer:
Microchip Technology Inc
MCP6V87T-E/MS Frequently Asked Questions (FAQs)
-
A good PCB layout for the MCP6V87T-E/MS involves keeping the input and output traces short and direct, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
-
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high capacitance value. A minimum capacitance of 10uF is recommended, and the capacitor should be placed as close to the output pin as possible.
-
The maximum power dissipation of the MCP6V87T-E/MS is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating temperature and thermal resistance.
-
The MCP6V87T-E/MS is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking and cooling to maintain reliable operation.
-
To protect the MCP6V87T-E/MS from input voltage transients and surges, it's recommended to use a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. Additionally, a fuse or a current-limiting resistor can be used to prevent overcurrent conditions.
Trust Checks
Community Provided
System Verified
Community Approved
MCP6V87T-E/MS Overview

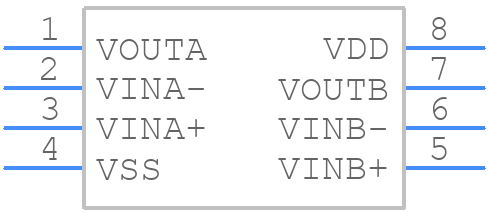

Use the download button to access the MCP6V87T-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6V,
or try a keyword search, such as Operational Amplifiers
