MCP6V96UT-E/LTY - Microchip

Description: Operational Amplifiers - Op Amps Single, Zero-Drift Op Amp, E Temp

Download MCP6V96UT-E/LTY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

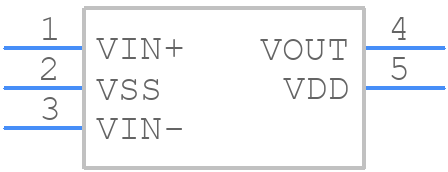

MCP6V96UT-E/LTY - Microchip - PCB symbol
