MCP73833-AMI/UN - Microchip

Description: Microchip MCP73833-AMI/UN, Battery Charge Controller Lithium-Ion, Lithium-Polymer, 10-Pin MSOP

Download MCP73833-AMI/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

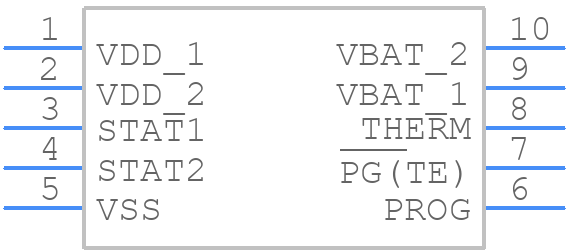

MCP73833-AMI/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP73833-AMI/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (UN) (MSOP)
click to zoom
3D Models
MCP73833-AMI/UN - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (UN) (MSOP)
click to zoom

MCP73833-AMI/UN Details

  • Manufacturer Part Number:

    MCP73833-AMI/UN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

MCP73833-AMI/UN Frequently Asked Questions (FAQs)

  • The maximum charging current that the MCP73833 can handle is 1.5A, but it can be limited to a lower value by using an external resistor.
  • The MCP73833 has a built-in over-charge protection feature that prevents the battery from being overcharged. When the battery is fully charged, the device reduces the charge current to a trickle charge to prevent overcharging.
  • No, the MCP73833 is designed to charge a single lithium-ion or lithium-polymer battery. It is not suitable for charging multiple batteries.
  • The operating temperature range of the MCP73833 is -40°C to +85°C.
  • The MCP73833 has a built-in battery detection feature that detects when a battery is inserted or removed. When a battery is inserted, the device starts charging it, and when a battery is removed, the device shuts down to prevent backflow of current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP73833-AMI/UN Overview

Use the download button to access the MCP73833-AMI/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP73, or try a keyword search, such as Power Management Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
