MCP73837-FJI/UN - Microchip

Description: Microchip MCP73837-FJI/UN, Battery Charge Controller, 100mA, 10-Pin MSOP

Download MCP73837-FJI/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

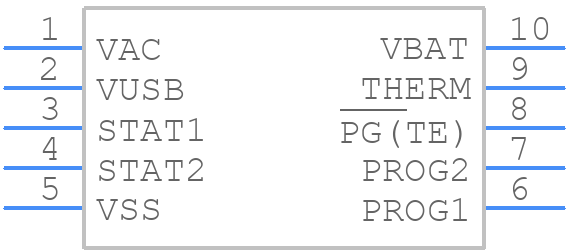

Symbol
MCP73837-FJI/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP73837-FJI/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (UN) (MSOP)_
click to zoom
3D Models
MCP73837-FJI/UN - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (UN) (MSOP)_
click to zoom

MCP73837-FJI/UN Details

  • Manufacturer Part Number:

    MCP73837-FJI/UN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.2V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP73837-FJI/UN Frequently Asked Questions (FAQs)

  • The maximum input voltage that the MCP73837 can handle is 7V. However, it's recommended to keep the input voltage below 6V to ensure reliable operation and to prevent damage to the internal voltage regulator.
  • The charge current of the MCP73837 can be configured by selecting the appropriate resistor value for the RPROG pin. The datasheet provides a table to help select the correct resistor value based on the desired charge current.
  • The EN pin is an active-high enable input that allows the user to turn the charger on or off. When the EN pin is high, the charger is enabled, and when it's low, the charger is disabled. This pin can be used to implement power management or to turn off the charger when not in use.
  • The MCP73837 has a built-in battery detection circuit that can detect when a battery is inserted or removed. When a battery is inserted, the charger will start charging the battery. When the battery is removed, the charger will enter a low-power standby mode to conserve power.
  • The MCP73837 uses a constant-current, constant-voltage (CCCV) charging profile. It first charges the battery with a constant current until the battery voltage reaches a certain threshold, and then switches to a constant voltage mode to trickle charge the battery.
