MCP73838T-FCI/MF - Microchip

Description: Li-Ion Charger USB/DC 4.2V 1A TE DFN10

Download MCP73838T-FCI/MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

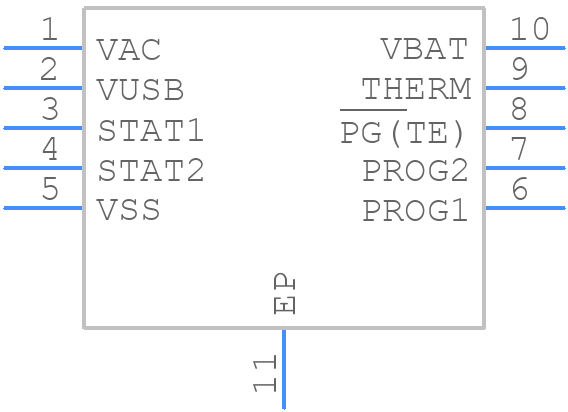

MCP73838T-FCI/MF - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP73838T-FCI/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MF)10-Lead(DFN)_2
click to zoom
3D Models
MCP73838T-FCI/MF - Microchip - 3D model - Small Outline No-lead - (MF)10-Lead(DFN)_2
click to zoom

MCP73838T-FCI/MF Details

  • Manufacturer Part Number:

    MCP73838T-FCI/MF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    DFN-10

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.2V

  • Width:

    3 mm

MCP73838T-FCI/MF Frequently Asked Questions (FAQs)

  • The maximum charging current that can be set using the ISET pin is 1.5A. However, the actual charging current may be limited by the internal resistance of the battery and the voltage drop across the internal FET.
  • The MCP73838T-FCI/MF has an internal over-voltage protection (OVP) circuit that monitors the input voltage and disconnects the input power if it exceeds 6.5V. This protects the device and the battery from damage due to over-voltage conditions.
  • Yes, the MCP73838T-FCI/MF can be used for charging lithium-ion batteries with different chemistries, such as LiCoO2, LiFePO4, and LiMnO2. However, the charging profile and termination voltage may need to be adjusted depending on the specific battery chemistry.
  • The STAT pin is a status output that indicates the charging status of the battery. It can be used to monitor the charging state, such as pre-charge, constant-current charging, and constant-voltage charging. The STAT pin can be connected to a microcontroller or other logic circuit to monitor the charging status and control the charging process.
  • The MCP73838T-FCI/MF has an internal thermal regulation circuit that monitors the device temperature and reduces the charging current if the temperature exceeds a certain threshold (typically 120°C). This helps to prevent overheating and damage to the device and the battery.
