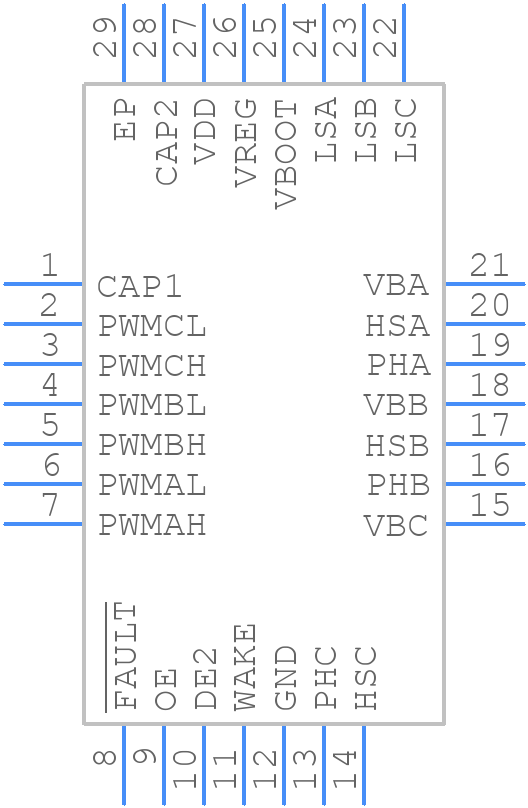

MCP8021T-3315H/9PX - Microchip

MCP8021T-3315H/9PX Details

• Manufacturer Part Number:

  MCP8021T-3315H/9PX

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  VQFN-28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2020-07-16

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8.6

• Additional Feature:

  Output Driver Sink Current Min-0.5A

• Analog IC - Other Type:

  3-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  S-PQCC-N28

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.9 mm

• Supply Current-Max (Isup):

  0.33 mA

• Supply Voltage-Max (Vsup):

  40 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  13.5 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
