MCP8026-115E/PT - Microchip

Description: 3-Phase BLDC Motor Driver IC 48-Pin TQFP Microchip MCP8026-115E/PT, Brushless DC Motor Driver 3-Phase Brushless DC Motor,, 48-Pin TQFP

Download MCP8026-115E/PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

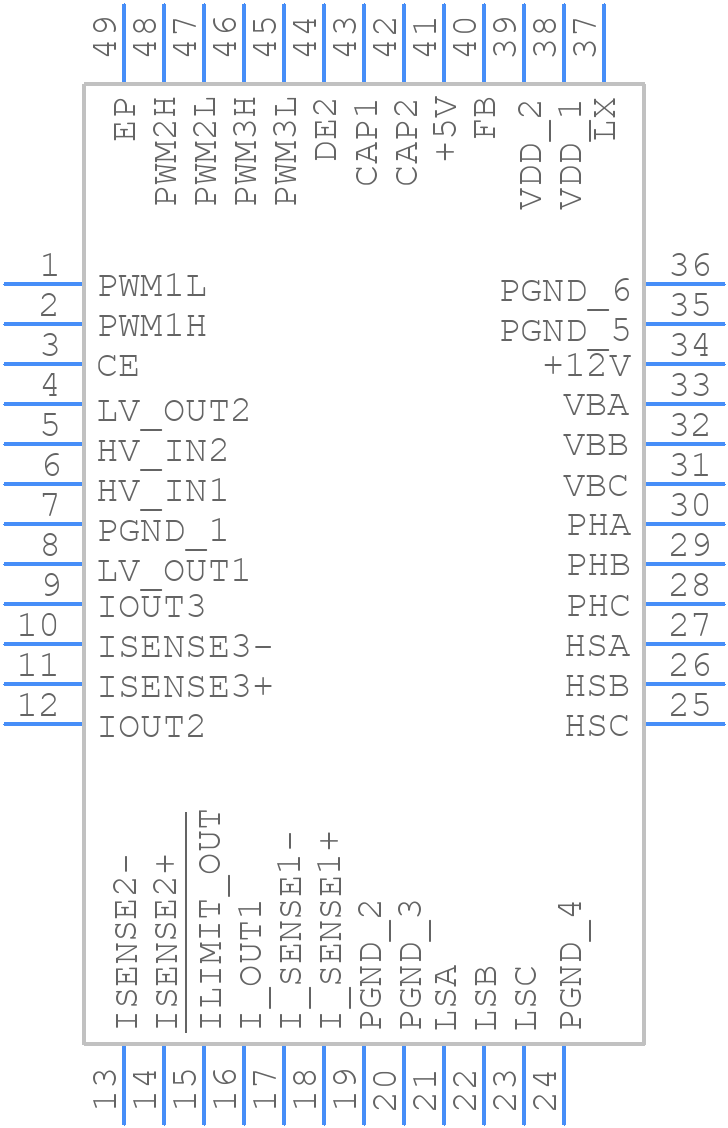

MCP8026-115E/PT - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP8026-115E/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Thin Quad FlatPack(PT)-7x7x1.0mm (TQFP) with EPAD
click to zoom
3D Models
MCP8026-115E/PT - Microchip - 3D model - Quad Flat Packages - 48-Lead Thin Quad FlatPack(PT)-7x7x1.0mm (TQFP) with EPAD
click to zoom

MCP8026-115E/PT Details

  • Manufacturer Part Number:

    MCP8026-115E/PT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

MCP8026-115E/PT Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP8026-115E/PT evaluation board user's guide, which includes thermal vias and a thermal pad to help dissipate heat. Following this layout can help ensure optimal thermal performance.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. Microchip provides a capacitor selection guide in the datasheet, but it's recommended to consult with a power supply expert or use a capacitor selection tool to ensure the correct values for your specific application.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general rule, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize derating.
  • To ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and consult with an EMC expert to ensure compliance with relevant standards and regulations.
  • The recommended output capacitor type and value depend on the output voltage, output current, and ripple requirements. Microchip recommends using a low-ESR ceramic or polymer capacitor with a value of 10uF to 22uF for most applications. However, it's recommended to consult with a power supply expert or use a capacitor selection tool to ensure the correct values for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP8026-115E/PT Overview

Use the download button to access the MCP8026-115E/PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP80, or try a keyword search, such as Motion Control Electronics
