MCP8026T-115H/PT - Microchip

Description: Motor / Motion / Ignition Controllers & Drivers 3-Phase Brushless DC Motor Gate Driver

Download MCP8026T-115H/PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

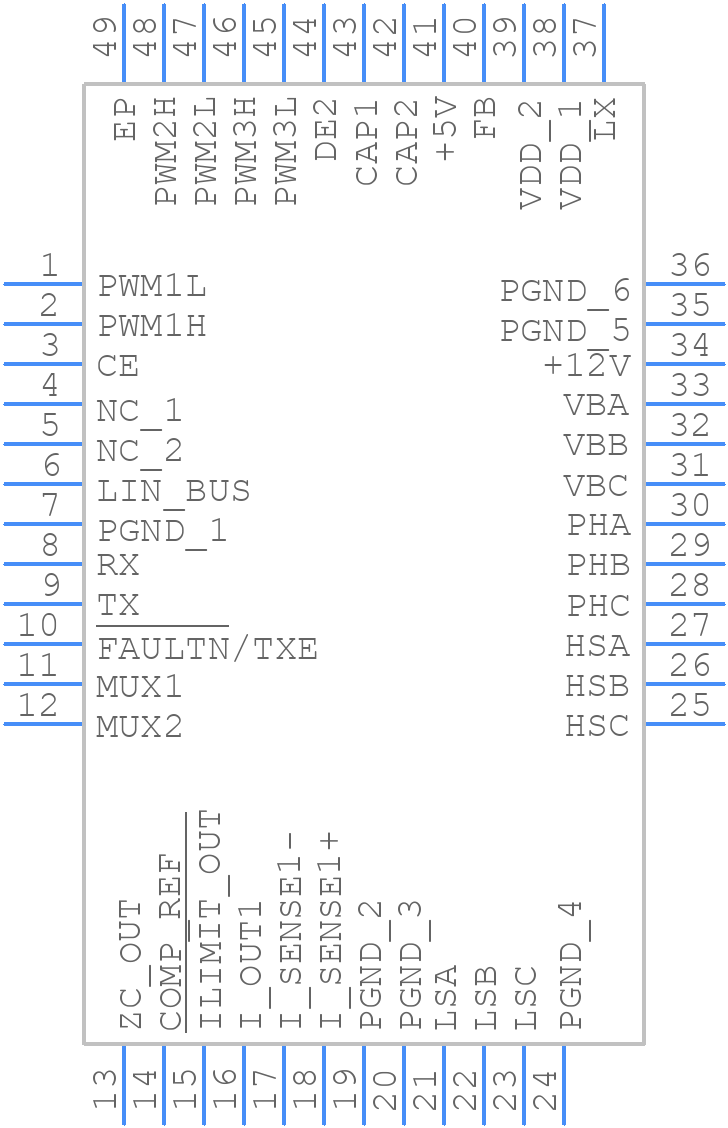

MCP8026T-115H/PT - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP8026T-115H/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - MCP8026T-115H/PT
click to zoom
3D Models
MCP8026T-115H/PT - Microchip - 3D model - Quad Flat Packages - MCP8026T-115H/PT
click to zoom

MCP8026T-115H/PT Details

  • Manufacturer Part Number:

    MCP8026T-115H/PT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

MCP8026T-115H/PT Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP8026T-115H/PT evaluation board user's guide, which includes thermal vias and heat sink recommendations to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines, use a heat sink, and consider derating the output current according to the device's thermal derating curve.
  • The maximum output current that can be safely delivered by the MCP8026T-115H/PT is 2A, but this is dependent on the ambient temperature and the device's thermal design. It is recommended to consult the device's thermal derating curve and follow the recommended PCB layout to ensure safe operation.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Also, verify that the device is properly configured and that the feedback network is correctly implemented.
  • The recommended input and output capacitors for the MCP8026T-115H/PT are 10uF and 22uF, respectively, with a voltage rating of at least 25V. However, the specific capacitor values and types may vary depending on the application and operating conditions.
