MCP8063-E/MD - Microchip

Description: Microchip MCP8063-E/MD, Brushless DC Motor Driver 3-Phase Brushless DC Motor,, 8-Pin DFN

Download MCP8063-E/MD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

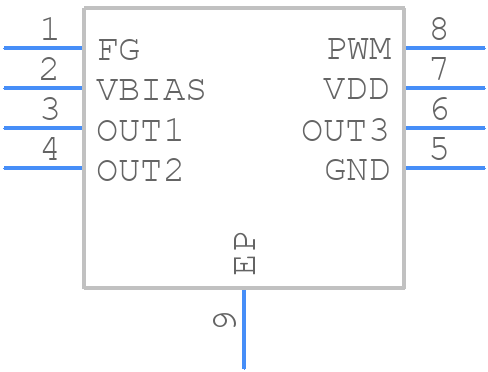

Symbol
MCP8063-E/MD - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP8063-E/MD - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MD)8-Lead(DFN)
click to zoom
3D Models
MCP8063-E/MD - Microchip - 3D model - Small Outline No-lead - (MD)8-Lead(DFN)
click to zoom

MCP8063-E/MD Details

  • Manufacturer Part Number:

    MCP8063-E/MD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

MCP8063-E/MD Frequently Asked Questions (FAQs)

  • The maximum input voltage that the MCP8063-E/MD can handle is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high capacitance value. A 10uF ceramic capacitor is recommended.
  • The minimum input capacitance required for the MCP8063-E/MD is 1uF, but it's recommended to use a 4.7uF or higher capacitance value to ensure stable operation.
  • The MCP8063-E/MD is rated for operation up to 125°C, but it's essential to ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended range to prevent overheating.
  • The output voltage of the MCP8063-E/MD can be calculated using the following formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (1.235V).
