MCPRW020JW82JB00 - Multicomp Pro

Description: WIREWOUND RESISTOR, 8.2 OHM, 20W, 5%, AXIAL

Download MCPRW020JW82JB00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCPRW020JW82JB00 - Multicomp Pro - PCB symbol
click to zoom

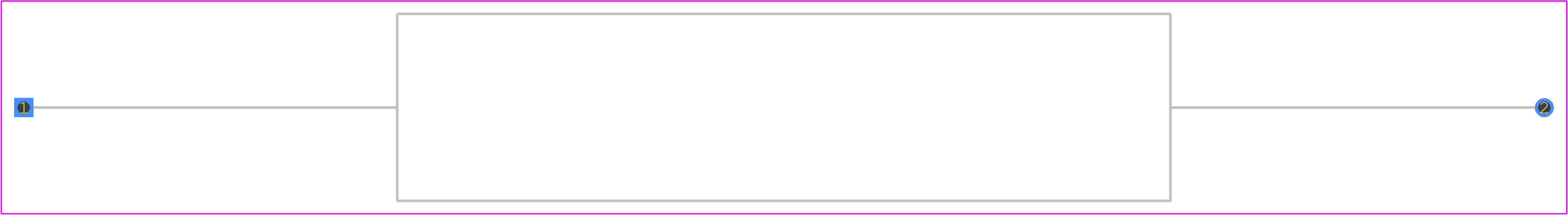

PCB Footprints
MCPRW020JW82JB00 - Multicomp Pro PCB footprint - Other - Other - MCPRW020JW82JB00-2
click to zoom
3D Models
MCPRW020JW82JB00 - Multicomp Pro - 3D model - Other - MCPRW020JW82JB00-2
click to zoom

MCPRW020JW82JB00 Details

  • Manufacturer Part Number:

    MCPRW020JW82JB00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    10

  • Construction:

    Axial

  • Lead Diameter:

    0.75 mm

  • Lead Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    13.5 mm

  • Package Length:

    60 mm

  • Package Style:

    Axial

  • Package Width:

    14.5 mm

  • Rated Power Dissipation (P):

    20 W

  • Rated Temperature:

    70 °C

  • Resistance:

    8.2 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    400 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    500 V

MCPRW020JW82JB00 Frequently Asked Questions (FAQs)
