MCQ4503B-TP - MCC

Description: Mosfet Array 30V 5.6A (Ta), 4.4A (Ta) 2W Surface Mount 8-SOP

Download MCQ4503B-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

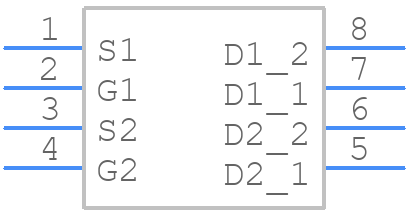

MCQ4503B-TP - MCC - PCB symbol
click to zoom
PCB Footprints

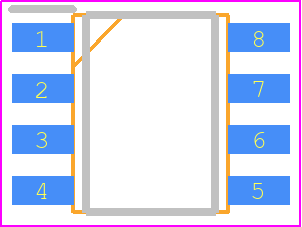

MCQ4503B-TP - MCC PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8(H=1.75mm)
click to zoom
3D Models
MCQ4503B-TP - MCC - 3D model - Small Outline Packages - SOP-8(H=1.75mm)
click to zoom

MCQ4503B-TP Details

  • Manufacturer Part Number:

    MCQ4503B-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    5

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    5.6 A

  • Drain-source On Resistance-Max:

    0.066 Ω

  • JESD-609 Code:

    e3

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    10

MCQ4503B-TP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MCQ4503B-TP is -40°C to 125°C.
  • Yes, the MCQ4503B-TP is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The maximum power dissipation for the MCQ4503B-TP is 1.5W, and it's essential to ensure proper thermal management to prevent overheating.
  • While the MCQ4503B-TP is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB design and layout considerations.
  • The MCQ4503B-TP is available in a TO-220AB package, but Micro Commercial Components may offer other package options upon request or for custom orders.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCQ4503B-TP Overview

Use the download button to access the MCQ4503B-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCQ45, or try a keyword search, such as Power Field-Effect Transistors
