- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCQ4559A-TP
- Part Number MCQ4559A-TP
- Manufacturer MCC
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages

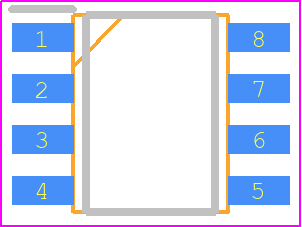

- Footprint Name Small Outline Packages - SOP-8(H=1.75mm)
- Released Date Jan 6, 2024
- Last Modified Date May 17, 2024 4:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCQ4559A-TP Details
-
Manufacturer Part Number:
MCQ4559A-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
5
-
DS Breakdown Voltage-Min:
60 V
-
Drain Current-Max (ID):
4.5 A
-
Drain-source On Resistance-Max:
0.05 Ω
-
Packing Method:
TR
MCQ4559A-TP Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the MCQ4559A-TP is -40°C to 125°C.
-
Yes, the MCQ4559A-TP is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
-
The typical power dissipation of the MCQ4559A-TP is around 1.5W, but it can vary depending on the specific application and operating conditions.
-
Yes, the MCQ4559A-TP is designed for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its high-quality construction and rigorous testing.
-
Yes, the MCQ4559A-TP is available in different package options, including TO-220, TO-263, and SOT-223, to accommodate various design requirements.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MCQ4559A-TP Overview

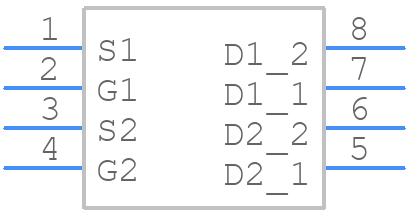

Use the download button to access the MCQ4559A-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCQ45,
or try a keyword search, such as Power Field-Effect Transistors
