MCR100JZHF2002 - ROHM Semiconductor

Description: ROHM MCR Series Thick Film Surface Mount Resistor 2512 Case 20kΩ ±1% 1W ±100ppm/°C

Download MCR100JZHF2002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCR100JZHF2002 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

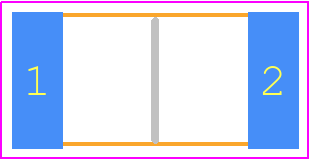

MCR100JZHF2002 - ROHM Semiconductor PCB footprint - Resistor Chip - Resistor Chip - SIZE CODE 6432-1
click to zoom
3D Models
MCR100JZHF2002 - ROHM Semiconductor - 3D model - Resistor Chip - SIZE CODE 6432-1
click to zoom

MCR100JZHF2002 Details

  • Manufacturer Part Number:

    MCR100JZHF2002

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; IATF 16949

  • Resistance:

    20000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    200 V

MCR100JZHF2002 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, consider derating the current rating at high temperatures.
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±10V to ensure reliable operation and prevent damage to the internal ESD protection diodes.
  • Yes, the MCR100JZHF2002 is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the PCB layout is optimized for high-frequency operation, and consider the device's switching losses and thermal performance.
  • Use a fuse or a current limiter to protect the device from overcurrent conditions. For overvoltage protection, consider using a TVS diode or a zener diode to clamp the voltage to a safe level.
