MCS1802GS-30-Z - Monolithic Power Systems (MPS)

Description: Board Mount Current Sensors 3.3V Hall current sensor. 1.5% accuracy. 2.4kV Isolation

Download MCS1802GS-30-Z Model

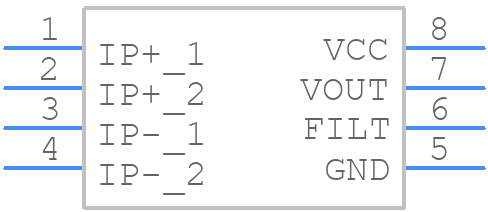

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCS1802GS-30-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
MCS1802GS-30-Z - Monolithic Power Systems (MPS)  - 3D model - Small Outline Packages - SOIC-8
click to zoom

MCS1802GS-30-Z Details

  • Manufacturer Part Number:

    MCS1802GS-30-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-05-08

  • Manufacturer:

    Monolithic Power Systems

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

MCS1802GS-30-Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCS1802GS-30-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and use thermal vias to connect the top and bottom layers.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines in the datasheet. Implement proper thermal management, such as heat sinks or thermal interfaces, and consider using a thermistor or temperature sensor to monitor the device temperature.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To calculate the power dissipation, you'll need to consider the input voltage, output voltage, output current, and efficiency of the device. Use the datasheet's efficiency curves and thermal resistance values to estimate the power dissipation. You can also use online power dissipation calculators or consult with a Monolithic Power Systems application engineer for guidance.
  • The MCS1802GS-30-Z is designed to meet EMI and EMC standards, but it's still important to follow proper PCB layout and design practices to minimize electromagnetic interference. Use shielding, filtering, and decoupling techniques to reduce emissions and ensure compliance with relevant standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCS1802GS-30-Z Overview

Use the download button to access the MCS1802GS-30-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCS18, or try a keyword search, such as Other Sensors/Transducers
