MCS3122-I/ST - Microchip

Description: Encoder 2.5V/3.3V 14-Pin TSSOP Tube

Download MCS3122-I/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

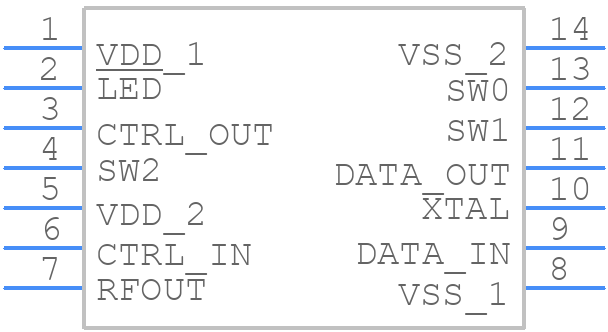

MCS3122-I/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCS3122-I/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom
3D Models
MCS3122-I/ST - Microchip - 3D model - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom

MCS3122-I/ST Details

  • Manufacturer Part Number:

    MCS3122-I/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MCS3122-I/ST Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCS3122-I/ST evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The MCS3122-I/ST has multiple operating modes, including SPI, I2C, and UART. Configuration is done through the device's registers, which are described in the datasheet. Microchip also provides example code and application notes to help with configuration and implementation.
  • The MCS3122-I/ST has a maximum data transfer rate of 100 Mbps for SPI mode and 400 kHz for I2C mode. The actual data transfer rate may vary depending on the system design and implementation.
  • The MCS3122-I/ST has built-in error detection and correction mechanisms, such as CRC and parity checking. Engineers should implement error handling routines in their firmware to detect and recover from errors, and refer to the datasheet for specific guidance on error handling.
  • The power consumption of the MCS3122-I/ST varies depending on the operating mode, frequency, and other factors. According to the datasheet, the typical power consumption is around 10 mA for SPI mode and 5 mA for I2C mode. Engineers should consult the datasheet and perform power analysis to determine the actual power consumption in their specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCS3122-I/ST Overview

Use the download button to access the MCS3122-I/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCS31, or try a keyword search, such as Other Consumer ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
