MCT2EM - onsemi

Description: IEC60747-5-2 recognized (File # 102497)– Add option V (e.g., MCT2VM); UL recognized (File #E90700, Vol. 2)

Download MCT2EM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

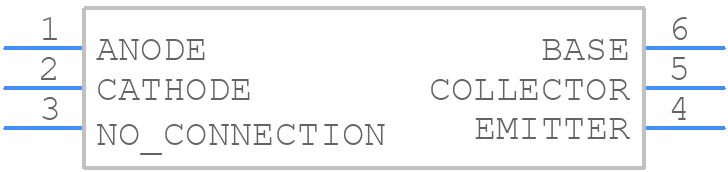

MCT2EM - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT2EM - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P 1
click to zoom
3D Models
MCT2EM - onsemi - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P 1
click to zoom

MCT2EM Details

  • Manufacturer Part Number:

    MCT2EM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed
