MCT6 - onsemi

Description: Choice of 3 current transfer ratios; Two isolated channels per package; VDE approved for IEC60747-5-2; Two packages fit into a 16 lead DIP socket; Underwriters Laboratory (U.L.) recognized File E90700

Download MCT6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

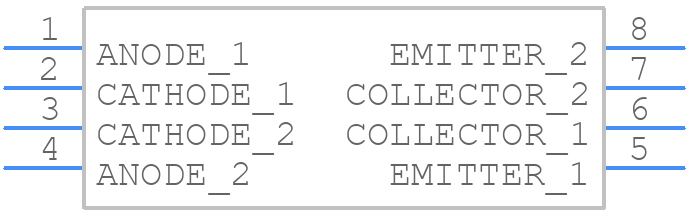

MCT6 - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT6 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P CASE 646CQ ISSUE O
click to zoom
3D Models
MCT6 - onsemi - 3D model - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P CASE 646CQ ISSUE O
click to zoom

MCT6 Details

  • Manufacturer Part Number:

    MCT6

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-16

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.03 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.4 W

  • Response Time-Max:

    0.000015 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MCT6 Frequently Asked Questions (FAQs)

  • The MCT6 can operate from -40°C to 150°C, but the recommended operating temperature range is -40°C to 125°C for optimal performance and reliability.
  • The MCT6 requires a bias voltage of 5V to 15V, and the recommended bias current is 10mA to 20mA. Ensure the bias voltage is stable and noise-free to achieve optimal performance.
  • Use a 4-layer PCB with a solid ground plane and a thermal via under the MCT6 to dissipate heat. Keep the thermal resistance (RthJA) below 10°C/W for optimal thermal performance.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins of the MCT6 to prevent damage from electrostatic discharge.
  • Store the MCT6 in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, not the leads, to prevent damage and electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCT6 Overview

Use the download button to access the MCT6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Optocoupler
