MCT61S - onsemi

Description: Optoisolator Transistor Output 5000Vrms 2 Channel 8-SMD,30mA,60 mA,400mV Operating Temperature -55°C ~ 100°C

Download MCT61S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

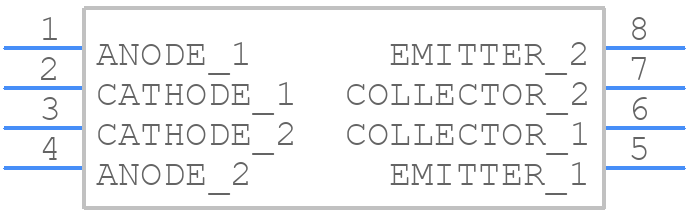

Symbol
MCT61S - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT61S - onsemi PCB footprint - Other - Other - PDIP8 GW CASE 709AF ISSUE O_2026
click to zoom
3D Models
MCT61S - onsemi - 3D model - Other - PDIP8 GW CASE 709AF ISSUE O_2026
click to zoom

MCT61S Details

  • Manufacturer Part Number:

    MCT61S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.03 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000024 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MCT61S Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MCT61S is 4.5V to 5.5V, with a typical operating voltage of 5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet, and to ensure good thermal conduction between the device and the heat sink or PCB.
  • The maximum allowable current through the MCT61S's output pins is 20mA per pin, with a total device current limit of 100mA.
  • The MCT61S can be interfaced with a microcontroller or other digital logic using standard CMOS logic levels, with a pull-up resistor and/or a voltage translator if necessary to match the voltage levels.
  • The internal pull-up resistors on the MCT61S are used to pull the output pins high when the device is in a high-impedance state, helping to prevent unwanted output transitions and reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCT61S Overview

Use the download button to access the MCT61S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT61, or try a keyword search, such as Optocoupler
