MCT62 - onsemi

Description: Two packages fit into a 16 lead DIP socket; Choice of 3 current transfer ratios; VDE approved for IEC60747-5-2; Two isolated channels per package; Underwriters Laboratory (U.L.) recognized File E90700

Download MCT62 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

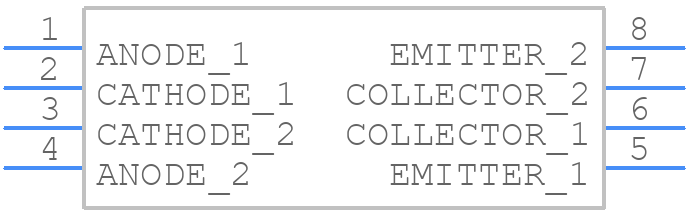

MCT62 - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT62 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-DIP
click to zoom
3D Models
MCT62 - onsemi - 3D model - Dual-In-Line Packages - 8-DIP
click to zoom

MCT62 Details

  • Manufacturer Part Number:

    MCT62

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-16

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.03 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000025 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed
