Description:Two packages fit into a 16 lead DIP socket; Choice of 3 current transfer ratios; VDE approved for IEC60747-5-2; Two isolated channels per package; Underwriters Laboratory (U.L.) recognized File E90700
A good PCB layout for optimal thermal performance involves placing the MCT623SD near a thermal pad or a heat sink, ensuring good thermal conductivity. The layout should also minimize thermal resistance by keeping the thermal path short and using thermal vias to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 150°C) and consider derating the device's power dissipation accordingly. Additionally, ensure good thermal management, such as using a heat sink or thermal pad, and avoid exceeding the maximum junction temperature (Tj) of 175°C.
For EMI and RFI shielding, it's recommended to use a metal shield or a shielded enclosure to minimize electromagnetic interference. The MCT623SD's pinout and PCB layout should be designed to minimize radiation and susceptibility to external interference. Additionally, consider using EMI filters or chokes to reduce emissions and improve immunity.
To handle overvoltage protection and surge protection, consider using external components such as TVS diodes, zener diodes, or surge protectors. These components can help clamp voltage transients and protect the MCT623SD from damage. Additionally, ensure that the device's voltage ratings are not exceeded, and consider using a voltage regulator to maintain a stable voltage supply.
The MCT623SD is a moisture-sensitive device, and exposure to high humidity or moisture can cause damage. To minimize the risk of moisture-related issues, store the devices in a dry, cool place, and follow the recommended handling and storage procedures. Consider using moisture-barrier bags or desiccants to maintain a dry environment during storage and transportation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCT623SD Overview

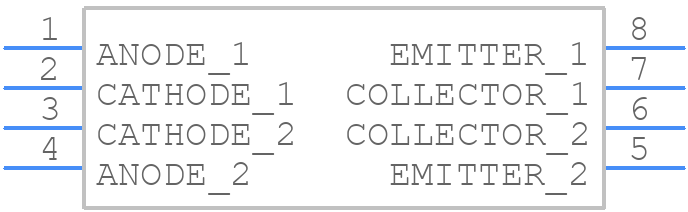

Use the download button to access the MCT623SD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT62,
or try a keyword search, such as Optocoupler
