MCT6SD - onsemi

Description: Choice of 3 current transfer ratios; Two isolated channels per package; VDE approved for IEC60747-5-2; Two packages fit into a 16 lead DIP socket; Underwriters Laboratory (U.L.) recognized File E90700

Download MCT6SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

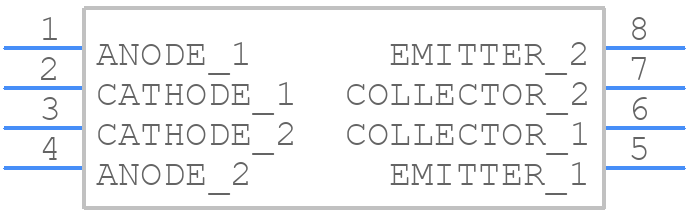

Symbol
MCT6SD - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT6SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MCT6SD
click to zoom

MCT6SD Details

  • Manufacturer Part Number:

    MCT6SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AF

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.03 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000025 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MCT6SD Frequently Asked Questions (FAQs)

  • The MCT6SD can operate from -40°C to 150°C, but the recommended operating temperature range is -40°C to 125°C for optimal performance.
  • The MCT6SD requires a bias voltage of 5V to 15V, and the recommended bias current is 10mA to 20mA. Ensure the bias voltage is stable and the bias current is within the recommended range for optimal performance.
  • The maximum power dissipation for the MCT6SD is 1.5W. Ensure the device is properly heat-sinked and the ambient temperature is within the recommended range to prevent overheating.
  • Yes, the MCT6SD can be used in switching applications, but it's essential to ensure the device is properly biased and the switching frequency is within the recommended range (up to 100 kHz).
  • The MCT6SD is sensitive to ESD. Ensure proper ESD protection measures are taken during handling, storage, and assembly, such as using ESD-safe materials, wrist straps, and ionizers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCT6SD Overview

Use the download button to access the MCT6SD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT6S, or try a keyword search, such as Optocoupler
