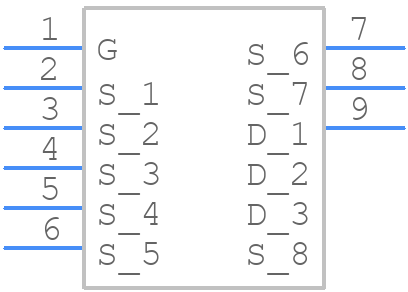

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCTL1D0N04YHE3-TP
- Part Number MCTL1D0N04YHE3-TP
- Manufacturer MCC
- Pin Count 12
- Part Category MOSFET (N-Channel)
- Package Category Other
- Footprint Name Other - TOLL-8L
- Released Date Apr 17, 2026
- Last Modified Date Apr 17, 2026 10:29 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCTL1D0N04YHE3-TP Details
-
Manufacturer Part Number:
MCTL1D0N04YHE3-TP
-
Manufacturer:
Micro Commercial Components
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MCTL1D0N04YHE3-TP Overview
Use the download button to access the MCTL1D0N04YHE3-TP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCTL1,
or try a keyword search, such as Power Field-Effect Transistors
