- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCTL270N04Y-TP
- Part Number MCTL270N04Y-TP
- Manufacturer MCC
- Pin Count 12
- Part Category MOSFET (N-Channel)
- Package Category Other

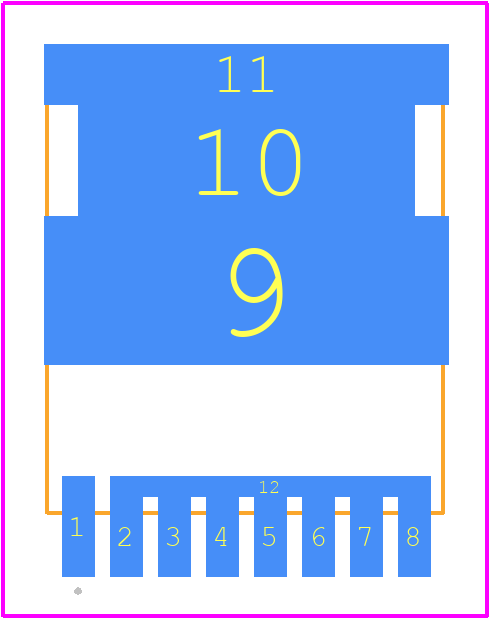

- Footprint Name Other - TOLL-8L_23
- Released Date Jan 2, 2024
- Last Modified Date May 20, 2024 9:49 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCTL270N04Y-TP Details
-
Manufacturer Part Number:
MCTL270N04Y-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
DS Breakdown Voltage-Min:
40 V
-
Drain Current-Max (ID):
270 A
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MCTL270N04Y-TP Overview

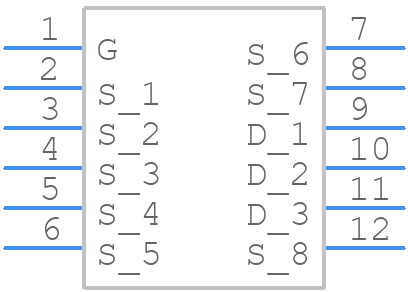

Use the download button to access the MCTL270N04Y-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCTL2,
or try a keyword search, such as Power Field-Effect Transistors
