MCU085P10-TP - MCC

MCU085P10-TP Details

• Manufacturer Part Number:

  MCU085P10-TP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

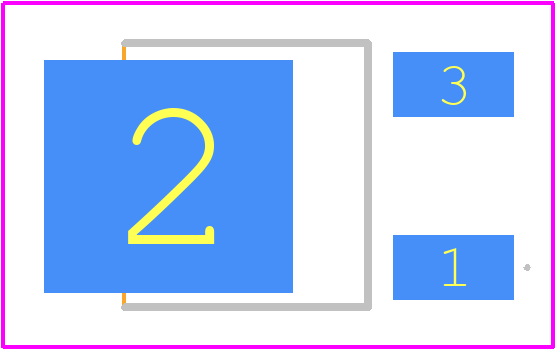

• Package Description:

  DPAK-3/2

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Manufacturer:

  Micro Commercial Components

• YTEOL:

  6

• Avalanche Energy Rating (Eas):

  81 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  100 V

• Drain Current-Max (ID):

  20 A

• Drain-source On Resistance-Max:

  0.102 Ω

• FET Technology:

  TRENCH MOSFET

• Feedback Cap-Max (Crss):

  70 pF

• JEDEC-95 Code:

  TO-252

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  P-CHANNEL

• Power Dissipation-Max (Abs):

  104 W

• Pulsed Drain Current-Max (IDM):

  80 A

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  10

• Transistor Element Material:

  SILICON
