Description:The MCWI03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and ultra-wide 4:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only0.3 square in. on the PCB.
The recommended PCB layout involves placing the DC-DC converter near the input voltage source, using a solid ground plane, and keeping the output voltage traces as short as possible. For thermal management, ensure good airflow around the converter, and consider adding a heat sink or thermal pad to the device.
To ensure EMC, follow proper PCB layout and design guidelines, use a metal enclosure or shielded case, and add EMI filters or ferrite beads to the input and output lines as needed. Additionally, consider conducting EMC testing and certification for your final product.
The derating curve for the MCWI03-12S05 is typically provided by Minmax Technology Co Ltd upon request. However, as a general guideline, the output power may need to be derated by 1-2% per degree Celsius above the maximum rated operating temperature to ensure reliable operation.
Yes, the MCWI03-12S05 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the input and output voltage, current, and power ratings. Consult with Minmax Technology Co Ltd or a qualified engineer for specific guidance on implementing a redundant or parallel configuration.
The typical MTBF for the MCWI03-12S05 is not explicitly stated in the datasheet, but it can be estimated based on the component quality, design, and manufacturing process. As a rough estimate, the MTBF for a high-reliability DC-DC converter like the MCWI03-12S05 can be in the range of 1-5 million hours.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCWI03-12S05 Overview

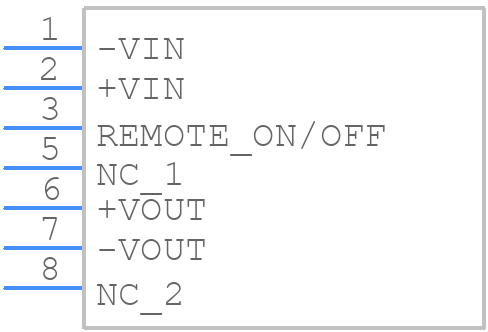

Use the download button to access the MCWI03-12S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCWI0,
or try a keyword search, such as Power Supply Modules
