Description:The MCWI03 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output and ultra-wide 4:1 input voltage ranges. The product comes in a SIP-8 package with a very small footprint occupying only0.3 square in. on the PCB.
The recommended PCB layout involves placing the DC-DC converter near the input capacitors and output capacitors, with a solid ground plane and minimal thermal resistance. Thermal management involves providing adequate airflow, using thermal vias, and applying thermal interface materials to ensure the junction temperature remains within the specified range.
To ensure EMC and EMI compliance, use a shielded enclosure, keep the input and output cables short and away from each other, add EMI filters, and follow the recommended PCB layout and grounding scheme. Additionally, perform EMC and EMI testing to validate compliance with relevant standards.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as a function of ambient temperature. The derating curve helps engineers design the system to ensure the converter operates within its specified temperature range and maintains the required output power.
Yes, the MCWI03-12S15 can be used in a redundant or parallel configuration. For redundancy, connect the outputs of multiple converters in parallel, ensuring the outputs are synchronized and the input voltage is shared. For parallel operation, connect the outputs of multiple converters in parallel, and use a load-sharing scheme to distribute the load current.
The recommended input capacitors are low-ESR, high-frequency capacitors (e.g., ceramic or film capacitors) with a minimum capacitance of 10uF. The recommended output capacitors are low-ESR, high-frequency capacitors (e.g., ceramic or film capacitors) with a minimum capacitance of 10uF. The choice of capacitors affects the converter's stability, output ripple, and transient response.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCWI03-12S15 Overview

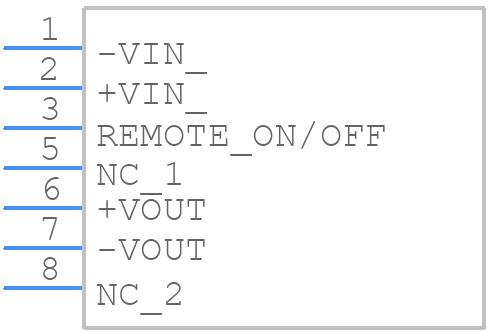

Use the download button to access the MCWI03-12S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCWI0,
or try a keyword search, such as Power Supply Modules
