Description:The MCWI05 series is a range of isolated 5W DC-DC converter modules featuring fully regulated output voltages and ultra-wide 4:1 input voltage ranges. The converters come in a very small SIP-8 package.
The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the converter.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the converter is placed at least 10mm away from other components. Additionally, use a common-mode choke and filter capacitors to reduce EMI.
The derating curve is typically provided by the manufacturer upon request. However, as a general guideline, the output power of the converter may need to be derated by 1-2% per degree Celsius above the recommended operating temperature range to ensure reliable operation.
Yes, the MCWI05-24D12 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization and current sharing. Consult the manufacturer's application notes or contact their technical support for guidance.
The MTBF of the MCWI05-24D12 is typically provided by the manufacturer upon request. However, as a general guideline, the MTBF of a DC-DC converter can range from 1 million to 5 million hours, depending on the quality of the components, design, and manufacturing process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCWI05-24D12 Overview

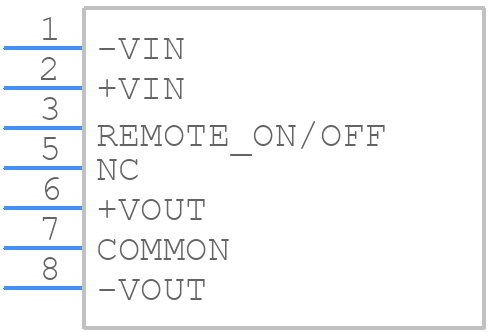

Use the download button to access the MCWI05-24D12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCWI0,
or try a keyword search, such as Power Supply Modules
