MCXA344VLF footprint, schematic symbol and 3D model by NXP

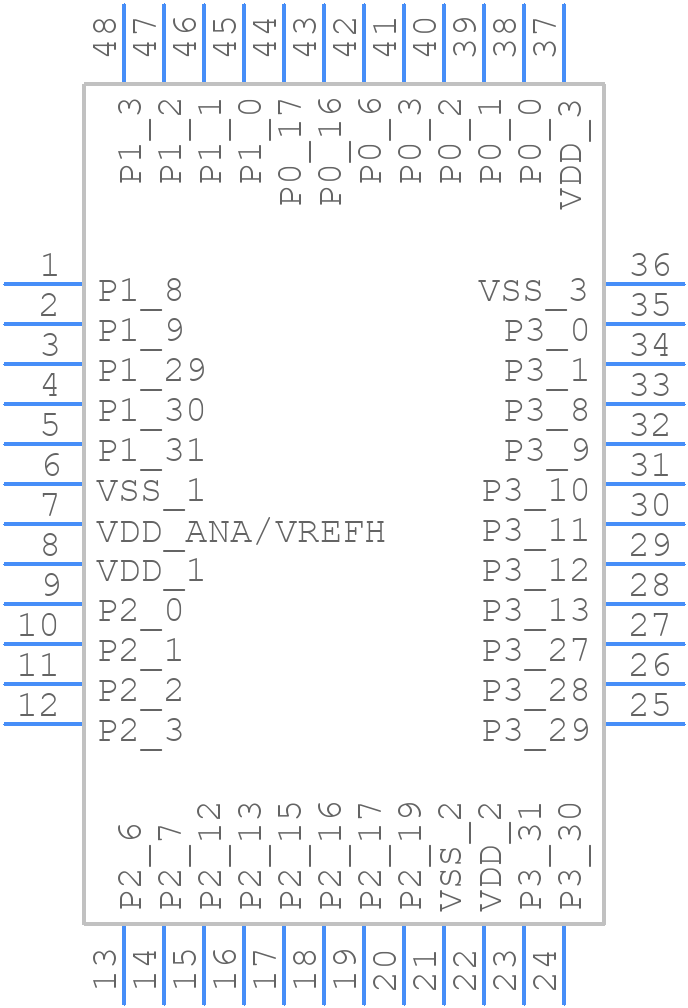

Symbol

click to zoom

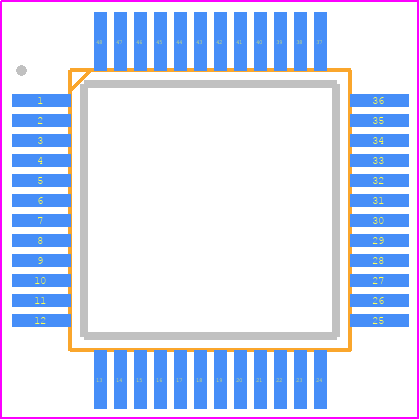

PCB Footprints

MCXA344VLF - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT313-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCXA344VLF
Part Number MCXA344VLF
Manufacturer NXP
Pin Count 48
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - SOT313-3
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 12:45 PM UTC
Pinout / Pin List Click Here (Member Only)

MCXA344VLF Details

Manufacturer Part Number:
MCXA344VLF
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.31.00.30
Manufacturer:
NXP Semiconductors
Moisture Sensitivity Level:
3
Peak Reflow Temperature (Cel):
260
Time@Peak Reflow Temperature-Max (s):
40
uPs/uCs/Peripheral ICs Type:
MOTION CONTROL MICROCONTROLLER

Trust Checks

Community Provided

System Verified

Community Approved

MCXA344VLF Overview

Use the download button to access the MCXA344VLF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MCXA3, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
