MCZ33800EK - NXP

Description: Motor / Motion / Ignition Controllers & Drivers AUTO ENG Control IC

Download MCZ33800EK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCZ33800EK - NXP - PCB symbol
click to zoom
PCB Footprints

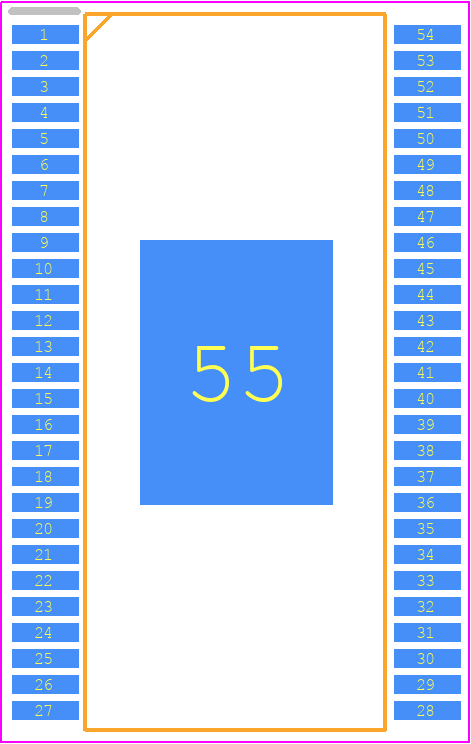

MCZ33800EK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOIC
click to zoom
3D Models
MCZ33800EK - NXP - 3D model - Small Outline Packages - SOIC
click to zoom

MCZ33800EK Details

  • Manufacturer Part Number:

    MCZ33800EK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.65 MM PITCH, ROHS COMPLIANT, SOIC-54

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Additional Feature:

    ALSO REQUIRES A SUPPLY OF 5V TO 36V

  • Driver Number of Bits:

    8

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G54

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    54

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP54,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

MCZ33800EK Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the MCZ33800EK application note (AN12241). It's essential to follow the guidelines for component placement, routing, and thermal management to ensure optimal performance, low EMI, and thermal dissipation.
  • The MCZ33800EK has multiple low-power modes. To configure the device for low-power mode, refer to the 'Power Management' section in the datasheet. You can use the PMU (Power Management Unit) to control the power modes. Additionally, you can use the 'Low Power Mode' bit in the 'System Control Register' to enable or disable low-power mode.
  • The MCZ33800EK has an operating temperature range of -40°C to 125°C. However, the device can be operated at a reduced frequency and voltage range for temperatures above 105°C. Refer to the 'Operating Conditions' section in the datasheet for more information.
  • The MCZ33800EK has a built-in watchdog timer (WDT) that can be enabled or disabled using the 'Watchdog Timer Control Register'. You can configure the WDT timeout period, reset mode, and other parameters using the 'Watchdog Timer Configuration Register'. Refer to the 'Watchdog Timer' section in the datasheet for more information.
  • NXP recommends using decoupling capacitors with a value of 10nF to 100nF, depending on the specific application and operating frequency. Place the decoupling capacitors as close as possible to the device's power pins to ensure optimal performance and noise reduction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCZ33800EK Overview

Use the download button to access the MCZ33800EK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCZ33, or try a keyword search, such as Other Interface ICs
