MCZ34701EW - NXP

Description: IC REG CTRLR POWER 2OUT 32SOIC

Download MCZ34701EW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

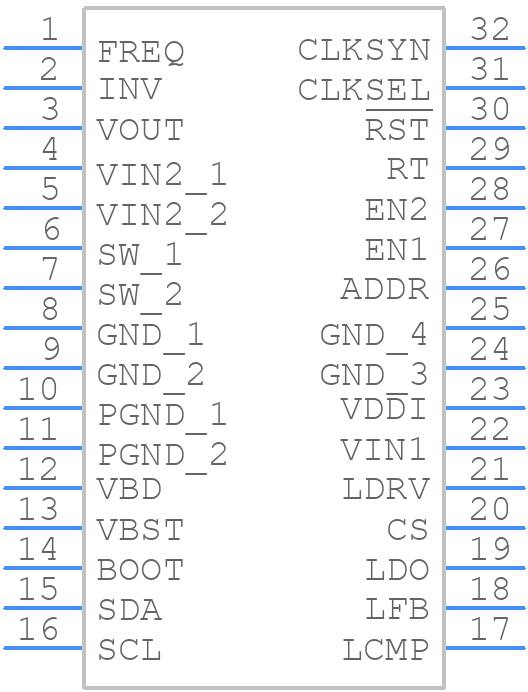

MCZ34701EW - NXP - PCB symbol
click to zoom
PCB Footprints
MCZ34701EW - NXP PCB footprint - Small Outline Packages - Small Outline Packages - 32Ld soic
click to zoom
3D Models
MCZ34701EW - NXP - 3D model - Small Outline Packages - 32Ld soic
click to zoom

MCZ34701EW Details

  • Manufacturer Part Number:

    MCZ34701EW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOICW-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    BOOST CONFIGURATION ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e3

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP32,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    400 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

MCZ34701EW Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MCZ34701EW. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common mode choke to reduce EMI. Refer to NXP's application note AN11524 for more details.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. Use NXP's online inductor selection tool or consult the datasheet's inductor selection guide to determine the optimal value for your design.
  • The MCZ34701EW is rated for operation up to 105°C ambient temperature. However, it's recommended to derate the device's performance and consider thermal management for high-temperature applications.
  • The MCZ34701EW has built-in OVP and UVP features. Connect the OVP pin to a voltage divider network to set the OVP threshold, and use the UVP pin to monitor the output voltage. Refer to the datasheet for specific implementation details.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF and 10 μF. The input capacitor helps to filter the input voltage and reduce ripple.
