MD-30FC - Same Sky

Description: 3 Pin, Mini Circular Connector, Fully Shielded, Ferrite Filter

Download MD-30FC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD-30FC - Same Sky - PCB symbol
click to zoom

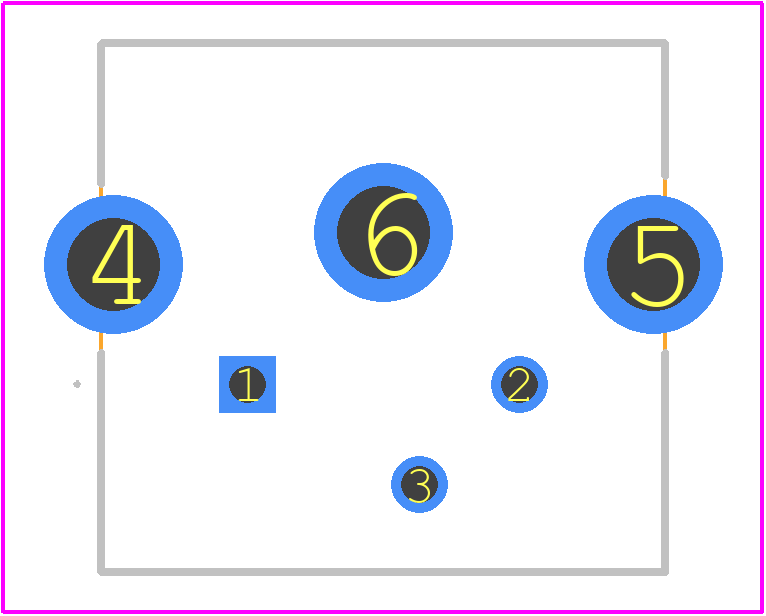

PCB Footprints
MD-30FC - Same Sky PCB footprint - Other - Other - MD-30FC-1
click to zoom
3D Models
MD-30FC - Same Sky - 3D model - Other - MD-30FC-1
click to zoom

MD-30FC Details

  • Manufacturer Part Number:

    MD-30FC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Breadth:

    0.51 inch

  • Body Depth:

    0.52 inch

  • Body Length:

    0.56 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    1000 Cycles

  • EMI Shielded:

    YES

  • Insertion Force-Max:

    44.1 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

MD-30FC Frequently Asked Questions (FAQs)

  • CUI Devices recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10nF) between the VCC and GND pins to reduce noise and ensure stable operation.
  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the pins. Ensure the pins are clean and free of oxidation before soldering. Avoid applying excessive force or heat, which can damage the device.
  • The MD-30FC is rated for operation from -40°C to 85°C, but it's recommended to derate the device's performance at temperatures above 70°C to ensure reliable operation.
  • While the MD-30FC is not hermetically sealed, it can operate in humid environments. However, it's recommended to apply a conformal coating to protect the device from moisture and ensure reliable operation.
  • The MD-30FC is designed to operate from a single 3.3V or 5V supply, but it's recommended to use a regulated power supply with a minimum of 3.0V and a maximum of 5.5V to ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD-30FC Overview

Use the download button to access the MD-30FC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-30, or try a keyword search, such as DIN Connectors

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
