MD-30SMK footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

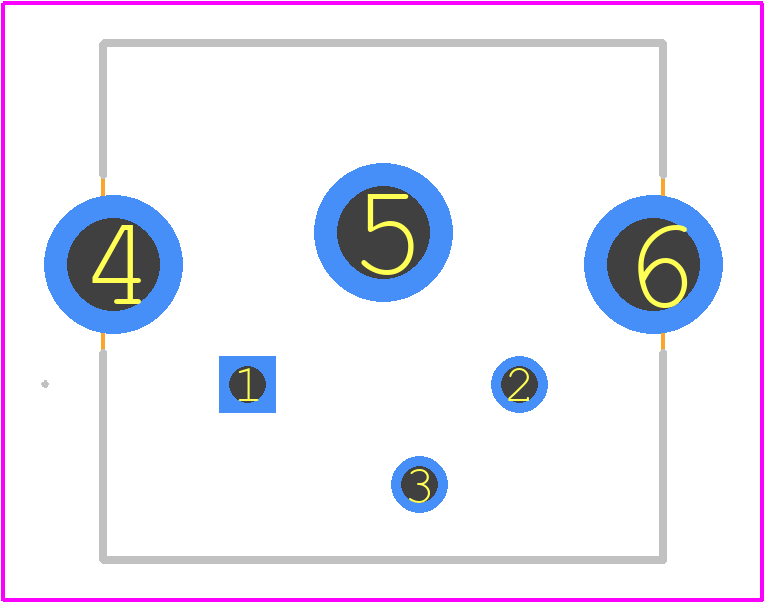

MD-30SMK - Same Sky PCB footprint - Other - Other - MD-30SMK-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MD-30SMK
Part Number MD-30SMK
Manufacturer Same Sky
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - MD-30SMK-1
Released Date Aug 5, 2026
Last Modified Date Aug 5, 2026 10:48 AM UTC
Pinout / Pin List Click Here (Member Only)

MD-30SMK Details

Manufacturer Part Number:
MD-30SMK
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
0
Board Mounting Option:
SOLDER HOLDING FLANGE
Body Breadth:
0.504 inch
Body Depth:
0.508 inch
Body Length:
0.551 inch
Body/Shell Style:
JACK
Connector Type:
MINI DIN CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Resistance:
30 mΩ
Contact Style:
SQ PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
YES
Insertion Force-Max:
44.1 N
Insulation Resistance:
50000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Shell Finish:
TIN
Shell Material:
STEEL
Terminal Length:
0.138 inch
Termination Type:
SOLDER
Total Number of Contacts:
3

MD-30SMK Frequently Asked Questions (FAQs)

A recommended PCB layout is to keep the input and output traces separate, use a solid ground plane, and minimize the distance between the module and the load to reduce EMI.
Ensure good airflow around the module, avoid blocking the vents, and consider using a heat sink or thermal interface material if the module will be operating in a high-temperature environment.
The maximum capacitance is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the output capacitance below 10uF to avoid stability issues.
Yes, but it's essential to ensure that the modules are synchronized and that the output voltages are matched to avoid oscillations or instability.
Check the input voltage, output load, and PCB layout for any issues. Verify that the module is operated within its specified temperature range and that the output capacitance is within the recommended range.
