- Part Number MD-50SM
- Manufacturer Same Sky
- Pin Count 8
- Part Category Connector
- Package Category Other

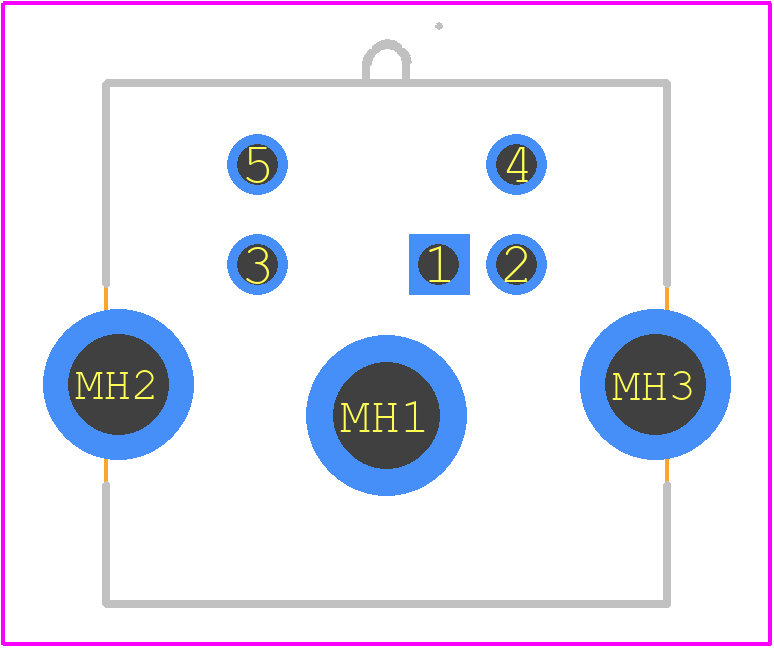

- Footprint Name Other - MD-50SM-2
- Released Date Oct 26, 2023
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD-50SM Details
-
Manufacturer Part Number:
MD-50SM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
Additional Feature:
STANDARD: 94V-0
-
Board Mounting Option:
SOLDER HOLDING FLANGE
-
Body Breadth:
0.504 inch
-
Body Depth:
0.512 inch
-
Body Length:
0.551 inch
MD-50SM Frequently Asked Questions (FAQs)
-
CUI Devices recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10uF) between the input and output pins to reduce noise and ensure stable operation.
-
Ensure good airflow around the module, avoid blocking the ventilation holes, and consider using a heat sink or thermal interface material if the module will be operating in a high-temperature environment.
-
The MD-50SM can tolerate up to 10% above the maximum rated input voltage (e.g., 5.5V for a 5V input) for short periods of time (e.g., during power-up or voltage transients). However, sustained operation above the maximum rated input voltage may reduce the module's lifespan.
-
Yes, the MD-50SM can be used in redundant or parallel configurations to increase power availability or reduce the risk of single-point failure. However, ensure that the modules are properly synchronized and that the output voltages are matched to avoid damage or instability.
-
The typical start-up time for the MD-50SM is around 10-20ms, depending on the input voltage and output load. This time may vary depending on the specific application and operating conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MD-50SM Overview
Use the download button to access the MD-50SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-50,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
