- Part Number MD-50SMK
- Manufacturer Same Sky
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - MD-50SMK-1
- Released Date Dec 22, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD-50SMK Details
-
Manufacturer Part Number:
MD-50SMK
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
0
-
Board Mounting Option:
SOLDER HOLDING FLANGE
-
Body Breadth:
0.504 inch
-
Body Depth:
0.508 inch
-
Body Length:
0.551 inch
MD-50SMK Frequently Asked Questions (FAQs)
-
CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
-
Follow the recommended soldering profile and assembly guidelines provided by CUI Devices, and ensure that the PCB is designed with adequate thermal relief and clearance around the component.
-
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with CUI Devices' technical support for specific guidance on temperature-related considerations.
-
The MD-50SMK is designed to meet standard vibration and shock requirements, but for extreme environments, it's recommended to consult with CUI Devices' technical support to discuss specific testing and validation requirements.
-
The MD-50SMK has built-in ESD protection, but it's still essential to follow standard ESD handling and storage procedures to prevent damage. Consult with CUI Devices' technical support for specific guidance on ESD protection and handling.
Trust Checks
Expert Contribution
System Verified
Community Approved
MD-50SMK Overview

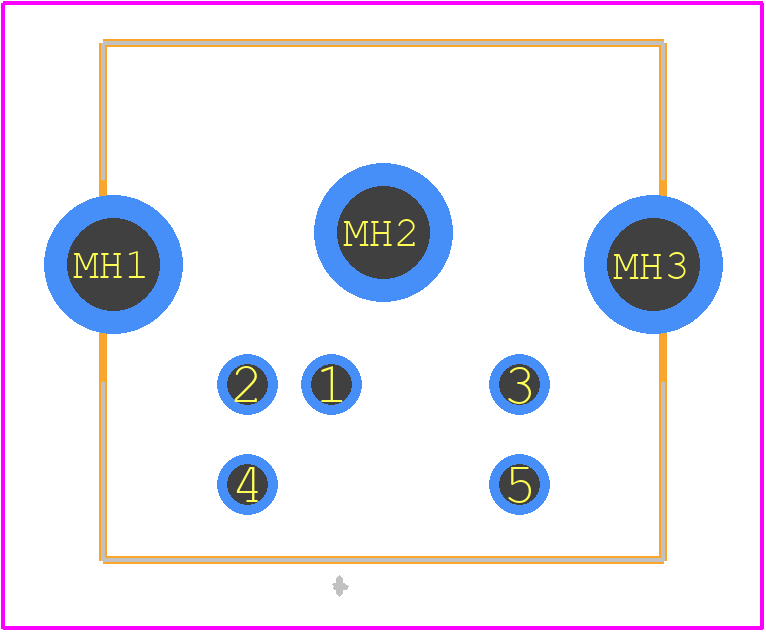

Use the download button to access the MD-50SMK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-50,
or try a keyword search, such as DIN Connectors
