MD-60SG footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

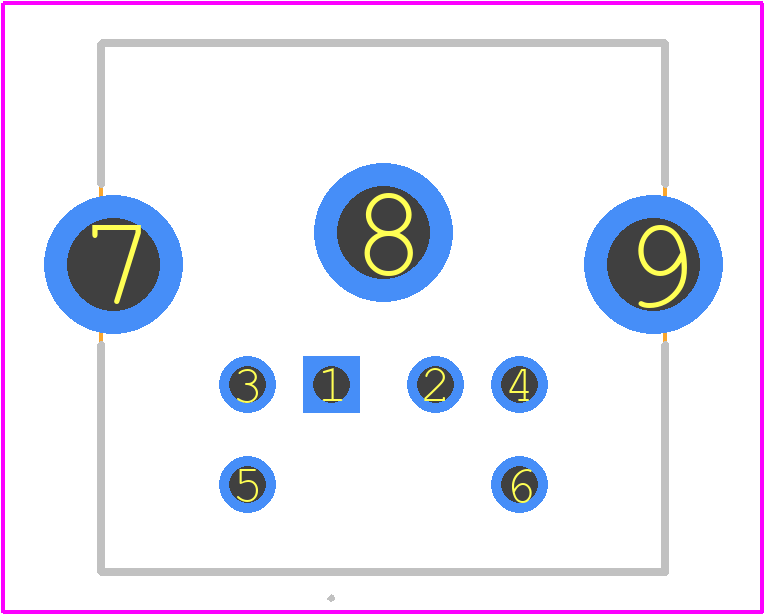

MD-60SG - Same Sky PCB footprint - Other - Other - MD-60SG-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MD-60SG
Part Number MD-60SG
Manufacturer Same Sky
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - MD-60SG-1
Released Date Aug 5, 2026
Last Modified Date Aug 5, 2026 7:45 AM UTC
Pinout / Pin List Click Here (Member Only)

MD-60SG Details

Manufacturer Part Number:
MD-60SG
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
0
Board Mounting Option:
SOLDER HOLDING FLANGE
Body Breadth:
0.51 inch
Body Depth:
0.52 inch
Body Length:
0.56 inch
Body/Shell Style:
JACK
Connector Type:
MINI DIN CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
YES
Insertion Force-Max:
44.1 N
Insulation Resistance:
50000000 Ω
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.14 inch
Termination Type:
SOLDER
Total Number of Contacts:
6

MD-60SG Frequently Asked Questions (FAQs)

CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the DC-DC converter. The input and output capacitors should be placed close to the converter, and the feedback traces should be routed away from noisy signals.
Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating in a high-temperature environment. Also, follow the recommended derating curves for output power and ambient temperature.
CUI Devices recommends using a low-ESR ceramic capacitor with a value of 10-22uF, rated for the input voltage range. The capacitor should be placed close to the input pins of the converter.
Check the input voltage and current, output voltage and current, and temperature of the device. Verify that the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to check for noise and ripple on the input and output lines.
Yes, the MD-60SG can be used in redundant or parallel configurations, but it requires careful design and consideration of the system's overall power architecture. Consult with a qualified engineer or CUI Devices' technical support for guidance on implementing such configurations.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MD-60SG Overview

Use the download button to access the MD-60SG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MD-60, or try a keyword search, such as DIN Connectors
