MD-60SGK - Same Sky

Description: DIN Connectors mini-DIN, 6P jack, rt, through hole, full shield

Download MD-60SGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD-60SGK - Same Sky - PCB symbol
click to zoom

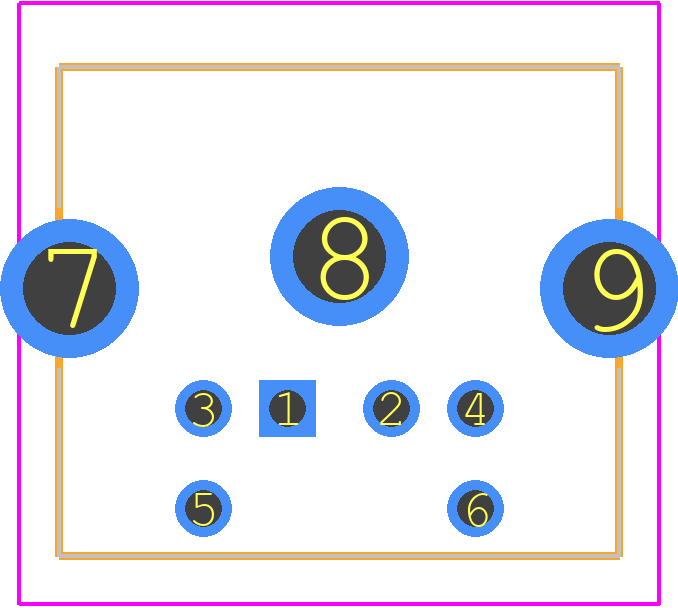

PCB Footprints
MD-60SGK - Same Sky PCB footprint - Other - Other - MD-60SGK
click to zoom
3D Models
MD-60SGK - Same Sky - 3D model - Other - MD-60SGK
click to zoom

MD-60SGK Details

  • Manufacturer Part Number:

    MD-60SGK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Breadth:

    0.51 inch

  • Body Depth:

    0.52 inch

  • Body Length:

    0.56 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    1000 Cycles

  • EMI Shielded:

    YES

  • Insertion Force-Max:

    44.1 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

MD-60SGK Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application note AN-103, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize electrical noise.
  • The MD-60SGK has a wide input voltage range of 36-60V. To choose the correct input voltage range, consider the maximum voltage rating of your system, the voltage drop across the input capacitors, and the minimum voltage required for the output voltage regulation. Consult the datasheet and application notes for more information.
  • The MD-60SGK has a maximum output current derating of 2.5A at 40°C ambient temperature. For higher ambient temperatures, the output current should be derated according to the thermal derating curve provided in the datasheet.
  • The MD-60SGK has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the overcurrent threshold, and connect the SCP pin to a capacitor that sets the short-circuit detection time. Consult the datasheet and application notes for more information.
  • CUI Devices recommends using a low-ESR ceramic capacitor with a value of 10-22μF for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD-60SGK Overview

Use the download button to access the MD-60SGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-60, or try a keyword search, such as DIN Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
