A good PCB layout for the MD-60SV involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
To ensure proper decoupling, place a 10uF to 22uF ceramic capacitor between the VIN and GND pins, and a 100nF to 1uF ceramic capacitor between the VOUT and GND pins. This will help filter out high-frequency noise and ensure stable operation.
The MD-60SV is rated for operation in ambient temperatures ranging from -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate within a range of 0°C to +70°C for optimal performance.
Yes, the MD-60SV is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB and can withstand the expected vibration levels.
To troubleshoot issues with the MD-60SV, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and mounted, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes or contact CUI Devices' technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MD-60SV Overview

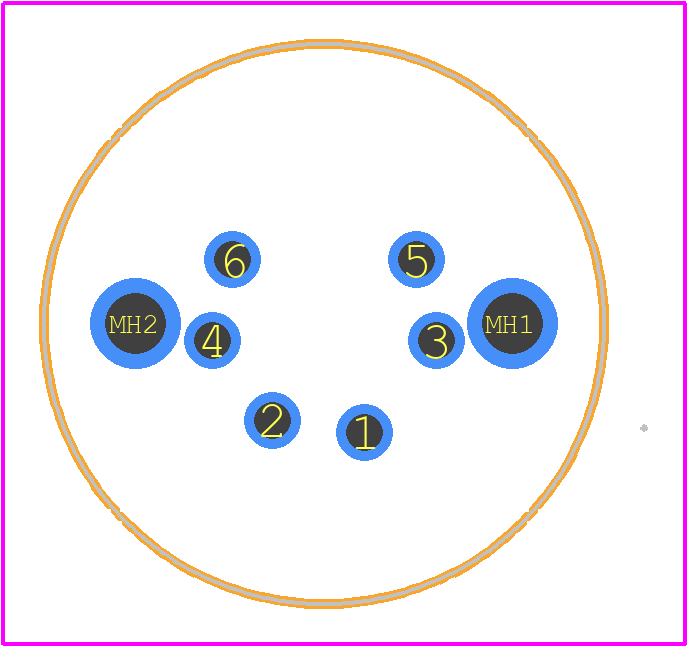

Use the download button to access the MD-60SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-60,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
