- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MD-80S
- Part Number MD-80S
- Manufacturer Same Sky
- Pin Count 9
- Part Category Connector
- Package Category Other

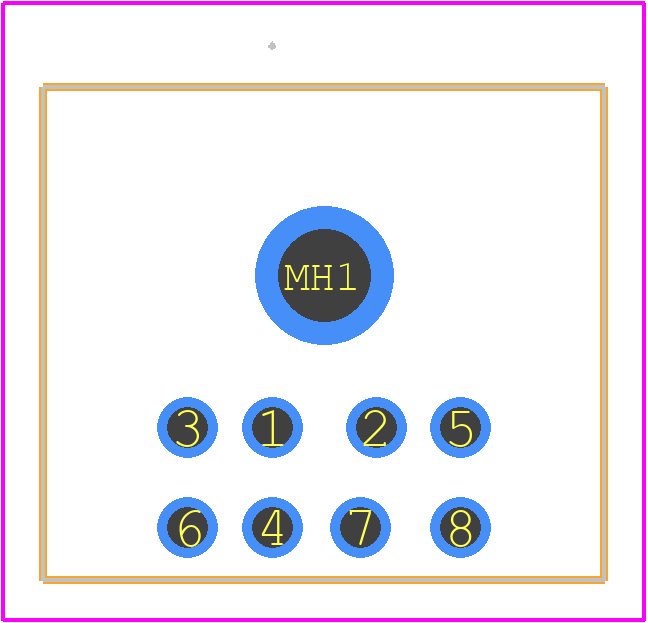

- Footprint Name Other - MD-80S-1
- Released Date Jun 22, 2020
- Last Modified Date May 20, 2026 3:53 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD-80S Details
-
Manufacturer Part Number:
MD-80S
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
7.55
-
Board Mounting Option:
SPLIT BOARD LOCK
-
Body Breadth:
0.503 inch
-
Body Depth:
0.484 inch
-
Body Length:
0.551 inch
MD-80S Frequently Asked Questions (FAQs)
-
CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the MD-80S. The layout should also ensure that the input and output traces are separated and shielded to minimize EMI.
-
The MD-80S has a maximum operating temperature of 85°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to improve heat dissipation. Avoid blocking the airflow vents on the device.
-
The recommended input voltage range for the MD-80S is 10-36VDC. Operating outside this range may affect the device's performance and reliability.
-
Yes, the MD-80S is designed to withstand vibrations up to 10G. However, it's essential to ensure the device is properly secured to the PCB and the PCB is securely fastened to the chassis to prevent damage.
-
Start by checking the input voltage, output voltage, and current draw. Verify that the device is properly connected and configured. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MD-80S Overview
Use the download button to access the MD-80S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-80,
or try a keyword search, such as DIN Connectors
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
