MD-80SV - Same Sky

Description: 8 Pin, Vertical Mount, Mini Circular Connector

Download MD-80SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD-80SV - Same Sky - PCB symbol
click to zoom
PCB Footprints

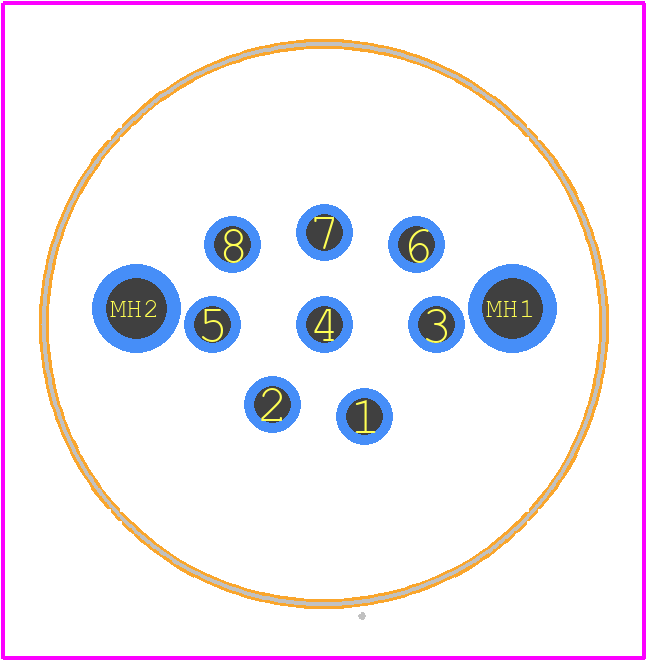

MD-80SV - Same Sky PCB footprint - Other - Other - MD-80SV-2
click to zoom
3D Models
MD-80SV - Same Sky - 3D model - Other - MD-80SV-2
click to zoom

MD-80SV Details

  • Manufacturer Part Number:

    MD-80SV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • Additional Feature:

    STANDARD: 94V-0

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Depth:

    0.374 inch

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    1000 Cycles

  • EMI Shielded:

    NO

  • Insertion Force-Max:

    58.84 N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

MD-80SV Frequently Asked Questions (FAQs)

  • CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the MD-80SV. The layout should also ensure that the input and output traces are separated and shielded to minimize EMI.
  • The MD-80SV has a maximum operating temperature of 85°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to improve heat dissipation. Avoid blocking the airflow vents on the device.
  • The recommended input voltage range for the MD-80SV is 36-72V DC. Operating outside this range may affect the device's performance and reliability.
  • Use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended range. Consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The maximum output current of the MD-80SV is 80A. Exceeding this current may cause the device to overheat or fail.
