Part Image

MD-90S - Same Sky

Description: 9 Pin, Mini Circular Connector w/o Shield , 12 Vdc, 250 Vdc,30 mΩ,-40 85 °C

Download MD-90S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

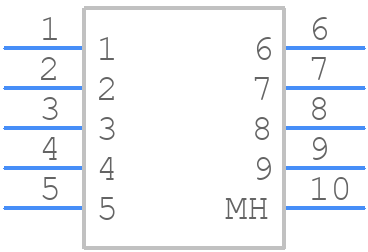

Symbol
MD-90S - Same Sky - PCB symbol
click to zoom

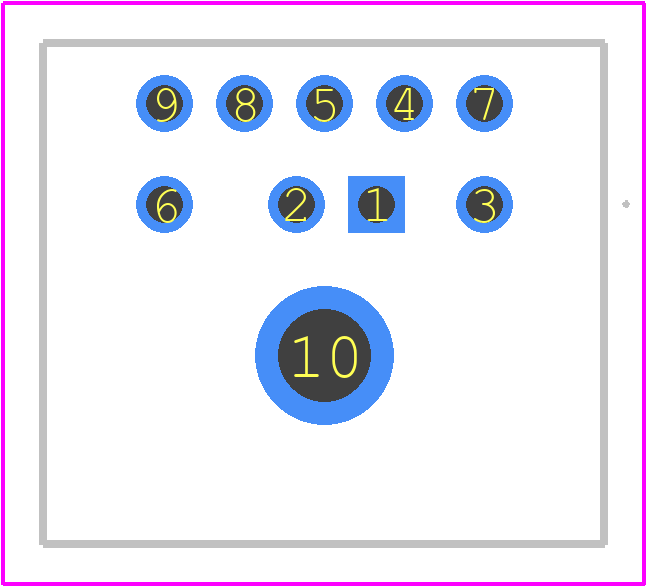

PCB Footprints
MD-90S - Same Sky PCB footprint - Other - Other - MD-90S-2
click to zoom
3D Models
MD-90S - Same Sky - 3D model - Other - MD-90S-2
click to zoom

MD-90S Details

  • Manufacturer Part Number:

    MD-90S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    7.5

  • Board Mounting Option:

    LOCKPIN

  • Body Breadth:

    0.511 inch

  • Body Depth:

    0.484 inch

  • Body Length:

    0.551 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    MINI DIN CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • EMI Shielded:

    NO

  • Insertion Force-Max:

    45 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

MD-90S Frequently Asked Questions (FAQs)

  • A good PCB layout for the MD-90S involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 10nF capacitor between the input and ground to filter out noise.
  • To ensure proper decoupling, place a 10uF capacitor between the input and ground, and a 100nF capacitor between the output and ground. This will help filter out noise and ensure stable operation.
  • The MD-90S can handle input voltages up to 30V, but it's recommended to operate within the specified input voltage range of 9-18V for optimal performance and reliability.
  • The MD-90S is rated for operation up to 85°C, but it's recommended to derate the output power by 1.5% per degree Celsius above 60°C to ensure reliable operation.
  • To troubleshoot issues with the MD-90S, check the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and that the output voltage and current are within the specified limits. Also, check for any signs of overheating or physical damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD-90S Overview

Use the download button to access the MD-90S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD-90, or try a keyword search, such as DIN Connectors
